Adaptador Inalámbrico PCI Express Banda Dual AC AC1200

Archer T4E

Easy Installation – Plug the adapter into an available PCI-E slot to upgrade your desktop

High Speed Wi-Fi – Up to 1200 Mbps Wi-Fi speeds (867 Mbps on 5 GHz band and 300 Mpbs on 2.4 GHz band)

802.11ac Dual Band – 3 times faster than the 802.11n standard, perfect for high-intensity network usage

Beamforming – Wi-Fi signals are strengthened towards certain direction where client exists

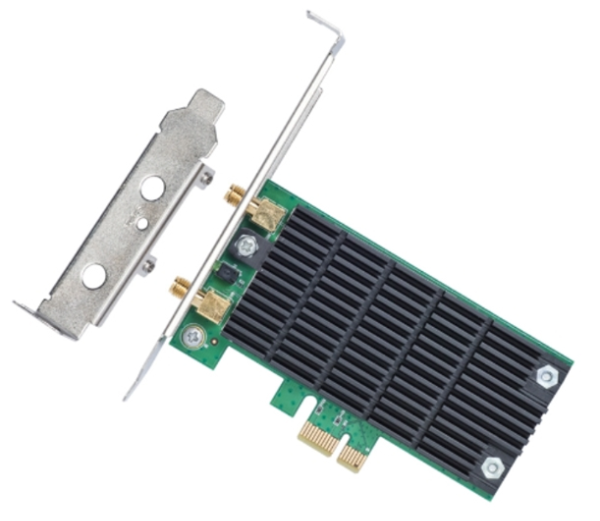

Multiple-Size Brackets – Low profile and full heigh brackets are both provided, suitable for all PCs

2×2 MIMO – Users can easily access to high-speed wireless connection

Broad Wireless Range – Two external antennas ensure greater Wi-Fi coverage and enhanced stability

CARACTERÍSTICAS DE HARDWARE

Interface PCI Express

Dimensiones (W X D X H) 4.8 x 4.5 x 0.85 in (120.8*115.2*21.5 mm)

Tipo de Antena 2 Dual Band Detachable Antennas

CARACTERÍSTICAS INALÁMBRICAS

Estándares Inalámbricos IEEE 802.11ac/n/a 5 GHz

IEEE 802.11n/g/b 2.4 GHz

Tasa de Señal 5 GHz

11ac: Up to 867 Mbps(dynamic)

11n: Up to 300 Mbps(dynamic)

11a: Up to 54 Mbps(dynamic)

2.4 GHz

11n: Up to 300 Mbps(dynamic)

11g: Up to 54 Mbps(dynamic)

11b: Up to 11 Mbps(dynamic)

Sensibilidad de Recepción 5 GHz :

11ac HT80: -59.5 dBm

11ac HT40: -63 dBm

11ac HT20: -68 dBm

11n HT40: -70 dBm

11n HT20: -73 dBm

11a 54Mbps: -76 dBm

11a 6Mbps: -92 dBm

2.4GHz :

11n HT40: -67.5 dBm

11n HT20: -70 dBm

11g 54Mbps: -72 dBm

11b 11Mbps: -86.5 dBm

Potencia de Transmision 5 GHz : 24 dBm(FCC) / 23dBm(CE) (EIRP)

2.4 GHz : 25 dBm(FCC) / 20dBm(CE) (EIRP)

Modos Inalámbricos Ad-Hoc / Infrastructure mode

Seguridad Inalámbrica Support 64/128 bit WEP, WPA/WAP2, WPA-PSK/WPA2-PSK, 802.1x

Tecnología de Modulación DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM

OTHERS

Certification CE, FCC, RoHS

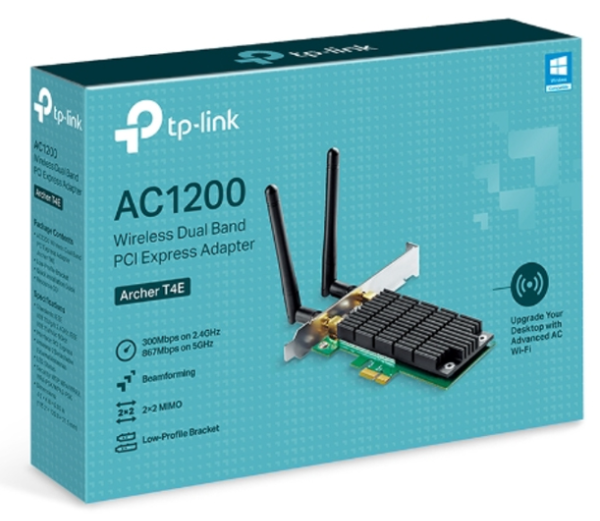

Package Contents AC1200 Wireless Dual Band PCI Express Adapter Archer T4E

Low-Profile Bracket

Quick Installation Guide

Resource CD

System Requirements Windows 10/8.1/8/7/XP (32/64bit)

Environment Operating Temperature: 0℃~40℃ (32℉~104℉)

Storage Temperature: -40℃~70℃ (-40℉~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
