HC220-G5

AC1200 Whole Home Mesh WiFi AP

- Faster Connections: Speeds up to 1200 Mbps—867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz.

- Boosted Seamless Coverage: Achieve seamless whole home coverage with a clearer and stronger WiFi signal.

- One Unified Network: Multiple units form a whole-home network that auto-selects the best connection as you move around your home.

- Enhanced Security: WPA3 encryption, Multi-SSID, and Parent Control provide personalized and safer online experience.

- EasyMesh Compatible: Provides whole home WiFi coverage with standard mesh technology.

- Easy Setup: Set up your router in minutes with intuitive TP-Link Tether App.

- TR-069 Remote Management: TR-098, TR-181, TR-111, and TR-143 are supported for automatic provisioning.

CARACTERÍSTICAS DE HARDWARE

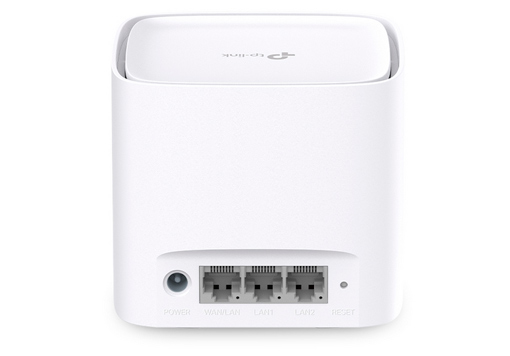

Interface 3× Gigabit Ports

*Per Unit

1 Port supports WAN/LAN auto-sensing

Botón Reset Button

WPS Button

Fuente de Alimentación Externa 12 V ⎓ 1.0 A

Dimensiones (W X D X H) 3.9 x 3.9 x 3.5 in

(100 x 100 x 89.5 mm)

CARACTERÍSTICAS INALÁMBRICAS

Estándares Inalámbricos Wi-Fi 5

IEEE 802.11ac/n/a 5 GHz

IEEE 802.11n/b/g 2.4 GHz

Frecuencia 2.4GHz and 5GHz

Tasa de Señal AC1200

5 GHz: 867 Mbps (802.11ac)

2.4 GHz: 300 Mbps (802.11n)

Potencia de Transmision FCC: <30 dBm(2.4GHz), <30 dBm(5GHz)

CE: <20 dBm (2.4GHz), <23 dBm (5GHz)

Seguridad Inalámbrica WPA/WPA-PSK2/WPA3 encryptions

Multi-SSID 3× 5 GHz Multi-SSID

3× 2.4 GHz Multi-SSID

CARACTERÍSTICAS DE SOFTWARE

Calidad de servicio WMM

WAN Type Dynamic IP/Static IP/PPPoE

Administración Local Management, Remote Management, TR-069(TR-098/TR-181), TR-111, TR-143

Seguridad de cortafuegos SPI Firewall

Protocolos IPv4

IPv6

Características Avanzadas Parental Controls, QoS (Quality of Service), Address Reservation, Port Forwarding,Wi-Fi Schedule

Cifrado WPA/WPA-PSK2/WPA3 encryptions

Modos de Trabajo Router Mode

Access Point Mode

Otros

Contenidos del Paquete HC220-G5 (2-pack)

2 HC220-G5 Units

1 RJ45 Ethernet Cable

2 Power Adapters

1 Quick Installation Guide

Certificaciones CE, FCC

Ambiente Operating Temperature: 0℃–40℃ (32℉ –104℉)

Storage Temperature: -40℃–60℃ (-40℉ –140℉)

Operating Humidity: 10%–90% non-condensing

Storage Humidity: 5%–90% non-condensing

For additional version information, please go to the support page.

*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
