CARACTERÍSTICAS DE HARDWARE

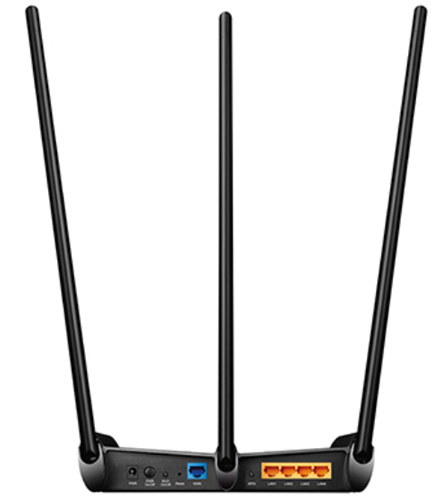

Interfaz 4 10/100Mbps LAN Ports

1 10/100Mbps WAN Port

Botones Wireless On/Off Button, RE Button, WPS Button

Reset Button, Power On/Off Button

Antenas 3*9dBi Detachable Omni Directional Antenna

(RP-SMA)

Fuente de Alimentación Externa 12VDC / 1.5A

Estándares Inalámbricos IEEE 802.11n, IEEE 802.11g, IEEE 802.11b,IEEE 802.11ac

Dimensiones 9.8x8.5x2.1in（249x217x54mm）

CARACTERÍSTICAS INALÁMBRICAS

Frecuencia 2.4GHZ and 5GHZ

Tasa de Señal 867Mbps at 5GHZ，450Mbps at 2.4GHZ

Sensibilidad de Recepción 867M： -61dBm@10% PER

450M: -71dBm@10% PER

54M: -77dBm@10% PER

11M: -89dBm@8% PER

6M: -89dBm@10% PER

1M: -97dBm@8% PER

Potencia de Transmisión CE:<20dBm

FCC:<30dBm

Funciones Inalámbricas Enable/Disable Wireless Radio, WDS Bridge,

WMM, Wireless Statistics

Wi-Fi 64/128/152-bit WEP / WPA / WPA2,

WPA-PSK / WPA2-PSK

CARACTERÍSTICAS DE SOFTWARE

Calidad de Servicio WMM, Bandwidth Control

Tipo de WAN Dynamic IP/Static IP/PPPoE/

PPTP/L2TP/

Gestión Access Control

Local Management

Remote Management

DHCP Server, Client, DHCP Client List,

Address Reservation

Reenvío de Puertos Virtual Server, Port Triggering, UPnP, DMZ

DNS Dinámico DynDns, Comexe, NO-IP

VPN Pass-Through PPTP, L2TP, IPSec (ESP Head)

Control de Acceso Parental Control, Local Management Control,

Host List, Access Schedule, Rule Management

Seguridad Firewall DoS, SPI Firewall

IP Address Filter/MAC Address Filter/Domain Filter

IP and MAC Address Binding

Otros

Certificaciones CE, FCC, RoHS, NCC, BSMI

Contenido del Paquete AC1350 High Power Wireless Dual Band Router

RJ45 Ethernet Cable

Power Adapter

Quick Installation Guide

Requisitos del sistema Microsoft® Windows 10/8.1/8/7, XP, MAC® OS,

NetWare®, UNIX® or Linux.

Factores Ambientales Operating Temperature: 0℃~40℃ (32℉~104℉)

Storage Temperature: -40℃~70℃ (-40℉~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
