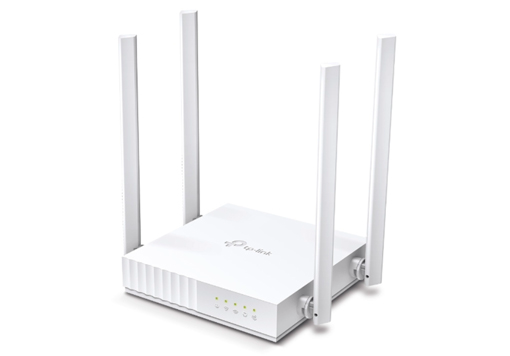

Archer C24

Router Wi-Fi de doble banda AC750

- Wi-Fi de alta velocidad: el AC750 de doble banda es ideal para transmisión de video HD y descarga de alta velocidad.

- Cobertura de gran alcance: las antenas 4 × brindan Wi-Fi de gran alcance y conexiones confiables.

- Multimodo 3 en 1: admite enrutador, punto de acceso y extensor de rango para agregar flexibilidad.

- Controles parentales: administra cuándo y cómo los dispositivos conectados pueden acceder a Internet.

- Red de invitados: proporciona acceso independiente para los invitados mientras protege la red del host.

- Transmisión fluida HD: admite IGMP Proxy / Snooping, Bridge y Tag VLAN para optimizar la transmisión IPTV.

- Compatible con IPv6: compatible con IPv6 (la última versión 6 del Protocolo de Internet).

- Compacto y montable: diseñado para ahorrar espacio y complementar cualquier decoración.

WIRELESS

Standards Wi-Fi 5

IEEE 802.11ac/n/a 5 GHz

IEEE 802.11n/b/g 2.4 GHz

WiFi Speeds AC750

5 GHz: 433 Mbps (802.11ac)

2.4 GHz: 300 Mbps (802.11n)

WiFi Range 2 Bedroom Houses4× Fixed Antennas

Multiple antennas form a signal-boosting array to cover more directions and large areas

WiFi Capacity MediumDual-Band

Allocate devices to different bands for optimal performance

Working Modes Router Mode

Access Point Mode

Range Extender Mode

HARDWARE

Processor Single-Core CPU

Ethernet Ports 1× 10/100 Mbps WAN Port

4× 10/100 Mbps LAN Ports

Botones WPS/Reset Button

Power 9 V ⎓ 0.6 A

SEGURIDAD

WiFi Encryption WEP

WPA

WPA2

WPA/WPA2-Enterprise (802.1x)

Network Security SPI Firewall

Access Control

IP & MAC Binding

Application Layer Gateway

Guest Network 1× 5 GHz Guest Network

1× 2.4 GHz Guest Network

SOFTWARE

Protocols IPv4

IPv6

Parental Controls URL Filtering

Time Controls

WAN Types Dynamic IP

Static IP

PPPoE

PPTP

L2TP

Quality of Service QoS by Device

NAT Forwarding Port Forwarding

Port Triggering

DMZ

UPnP

IPTV IGMP Proxy

IGMP Snooping

Bridge

Tag VLAN

DHCP Address Reservation

DHCP Client List

Server

DDNS NO-IP

DynDNS

Management Tether App

Webpage

Check Web Emulator>

PHYSICAL

Dimensions (W×D×H) 4.5 × 4.2 × 1.0 in

(115 × 106.7 × 24.3 mm)

Package Contents Wi-Fi Router Archer C24

Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide

OTHER

System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)

Certifications FCC, CE, RoHS

Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)

Storage Temperature: -40℃~60℃ (-40℉ ~140℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

TEST DATA

WiFi Transmission Power CE:

<20dBm(2.4GHz)

<23dBm(5GHz)

WiFi Reception Sensitivity 5GHz:

11a 54M: -76dBm;

11ac VHT20 MCS8: -71dBm;

11ac VHT40 MCS9: -66dBm;

11ac VHT80 MCS9: -62dBm

2.4GHz:

11g 54M: -76dBm;

11n HT20 MCS7: -73dBm;

11n HT40 MCS7: -71dBm
