AC1900 Wireless MU-MIMO Wi-Fi Router

802.11ac Wave2 Wi-Fi – 1300 Mbps on the 5 GHz band and 600 Mbps on the 2.4 GHz band.

3×3 MIMO Technology – Transmitting and receiving data on three streams to pair flawlessly with your 3×3 clients.

Boosted Wi-Fi Coverage – Beamforming technology and six external antennas deliver a highly efficient wireless connection.

MU-MIMO – To help your devices achieve optimal performance by making communication more efficient.

Personalized Management – Advanced features like Parental Controls, Guest Network, and Access Control provide individualized tools for network management.

Intelligent Connection – Smart Connect directs clients to the less congested band and Airtime Fairness optimizes the time usage.

INALAMBRICO

Estándares Wi-Fi 5

IEEE 802.11ac/n/a 5 GHz

IEEE 802.11n/b/g 2.4 GHz

Velocidad WiFi AC1900

5 GHz: 1300 Mbps (802.11ac)

2.4 GHz: 600 Mbps (802.11n)

Rango WiFi 3 Bedroom Houses

6× Fixed High-Performance Antennas

Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming

Concentrates wireless signal strength towards clients to expand WiFi range

Capacidad WiFi Medium

Dual-Band

Allocate devices to different bands for optimal performance

3×3 MU-MIMO

Simultaneously communicates with multiple MU-MIMO clients

Airtime Fairness

Improves network efficiency by limiting excessive occupation

Modos de trabajo Router Mode

Access Point Mode

SEGURIDAD

Seguridad de la red SPI Firewall

Access Control

IP & MAC Binding

Application Layer Gateway

Red de invitados 1× 5 GHz Guest Network

1× 2.4 GHz Guest Network

Cifrado WiFi WPA

WPA2

WPA3

WPA/WPA2-Enterprise (802.1x)

HARDWARE

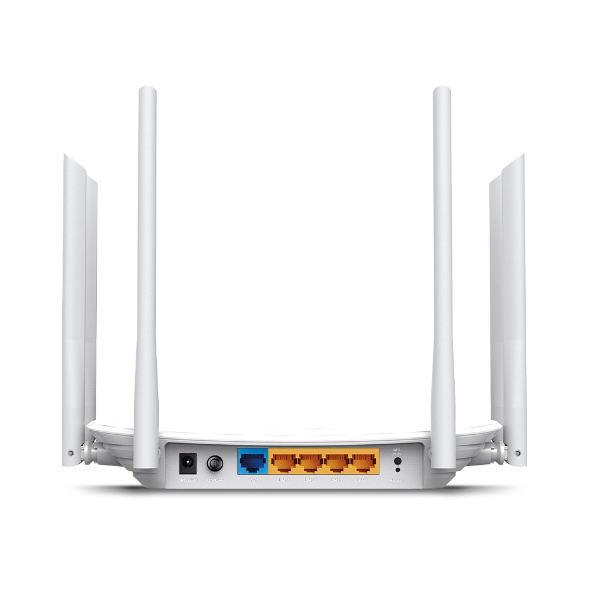

Puertos ethernet 1× Gigabit WAN Port

4× Gigabit LAN Ports

Botones WPS/Wi-Fi Button

Power On/Off Button

Reset Button

Energía US Version

12 V ⎓ 1.5 A

EU Version

12 V ⎓ 1 A

SOFTWARE

Protocolos IPv4

IPv6

EasyMesh Mesh networking creates smooth, fast, stable roaming. Archer C86 can build an EasyMesh network with devices that use EasyMesh technology. It also works with other TP-Link products to create a OneMesh network. Eliminate Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi.

Learn More>

Controles parentales URL Filtering

Time Controls

Tipos de WAN Dynamic IP

Static IP

PPPoE

PPTP

L2TP

Calidad de servicio QoS by Device

Cloud Service OTA Firmware Upgrade

TP-Link ID

DDNS

NAT Forwarding Port Forwarding

Port Triggering

DMZ

UPnP

IPTV IGMP Proxy

IGMP Snooping

Bridge

Tag VLAN

DHCP Address Reservation

DHCP Client List

Server

DDNS TP-Link

NO-IP

DynDNS

Gestión Tether App

Webpage

Check Web Emulator>

OTRO

Requisitos del sistema Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)

Certificaciones FCC, CE, RoHS

Ambiente Operating Temperature: 0℃~40℃ (32℉ ~104℉)

Storage Temperature: -40℃~70℃ (-40℉ ~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

DATOS DE PRUEBA

Potencia de transmisión WiFi CE:

<20dBm(2.4GHz)

<23dBm(5.15GHz~5.25GHz)

FCC:

<30dBm(2.4GHz & 5GHz)

Sensibilidad de recepción WiFi 5GHz:

11a 6Mbps:-98dBm, 11a 54Mbps:-78dBm

11ac VHT20_MCS0:-98dBm, 11ac VHT20_MCS8:-72dBm

11ac VHT40_MCS0:-92dBm, 11ac VHT40_MCS9:-68dBm

11ac VHT80_MCS0:-89dBm, 11ac VHT80_MCS9:-64dBm

2.4GHz:

11g 6Mbps:-97dBm, 11a 54Mbps:-77dBm

11n VHT20_MCS0:-97dBm, 11n VHT20_MCS8:-72dBm

11n VHT40_MCS0:-92dBm, 11n VHT40_MCS9:-67dBm

FÍSICO

Dimensiones (Al x An x Pr) 9.1 × 5.1 × 1.5 in

(229.9 × 144.2 × 37.2 mm)

contenidos del paquete Wi-Fi Router Archer C86

Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide

Obtenga productos, eventos y servicios para su región.

†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.

‡Use of MU-MIMO requires clients to also support MU-MIMO.

Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
