• Compatibilidad: Huawei/ZTE/Fiberhome/Nokia y otros OLT

• Características: Easymesh/Xmesh/Preset/IPTV/VoIP/OMCI/TR069

• Interfaz: 2/4*GE LAN; 1*POTS

• Antena: 4*6dBi

• Velocidad: 2.4G:300M; 5G:1201M

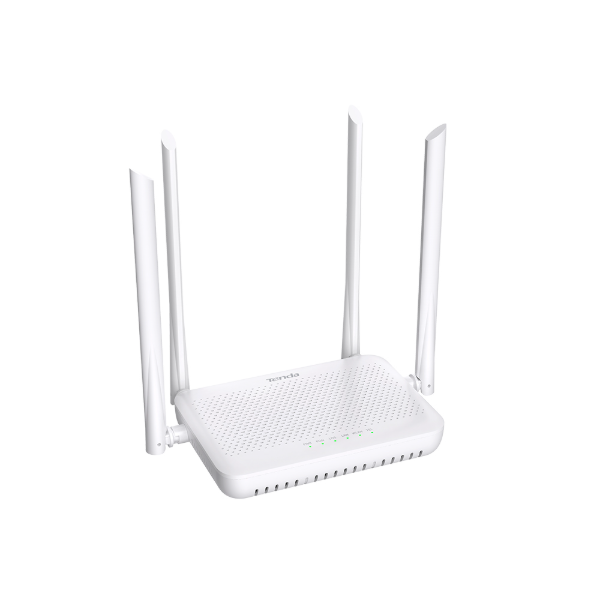

El Tenda HG15 es un terminal gigabit de red óptica pasiva XPON (EPON y GPON) que ofrece soluciones de terminal óptimas y capacidades de soporte de servicios de vanguardia para la implementación de FTTH, con una alta relación calidad-precio. El dispositivo utiliza el último estándar de tecnología Wi-Fi 6 802.11ax, es compatible con 802.11ac/b/g/n y ofrece una velocidad de conexión de 1500 Mbps. Es compatible con Internet, IPTV, VoIP y otros servicios, ofrece gran capacidad de transmisión, alta velocidad y alta fiabilidad, y cumple plenamente con la norma ITU-T G.984.x y otras normativas técnicas.

Especificaciones:

Hardware

IEEE Standards

IEEE 802, 802.1Q, 802.10, IEEE 802.11, 802.3U, 802.3Z

PON Standards

GPON：ITU G.984.1, ITU G984.2, ITU G984.3, ITU G984.4

EPON：IEEE 802.3 ah

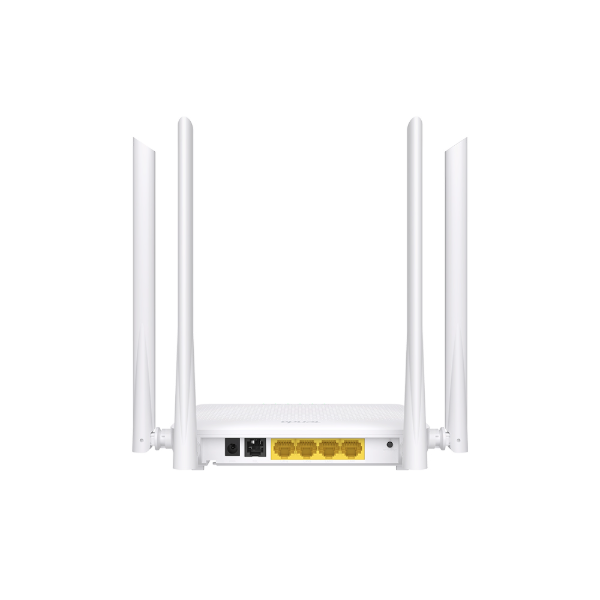

Interfaces

1 *SC/APC or SC/UPC （optional）Port

4 *1000Mbps RJ45 LAN Ports

1 *TEL Port

1 *DC Power

LED Indicator

PWR, PON, LOS, LAN, WLAN, TEL

Button

1 *RST/WPS Button

Optical Mode

Class B+

Optical Wavelength

Transmit at 1310nm, Receive at 1490nm

Transmission Distance

20km Max

Bandwidth

GPON : Upstream 1.244Gbps Max, Downstream 2.488Gbps Max

EPON : Upstream 1.244Gbps Max, Downstream 1.244Gbps Max

Dimension

220.8×141.9×31mm（L×W×H)

TX Power

0.5~5dBm

RX Power

-28~-8dBm

External Power Supply

DC 12V /1.5A

Power Consumption

≤18w

Software

DHCP Server

Server, Client, DHCP Client List, Address Reservation, DHCP Relay

WAN Connection

PPPoE , Dynamic IP, Static IP, Bridge, Support Multiple WAN Connection

Business Type

TR069, Internet, IPTV, VoIP

Quality Of Service

Bandwidth Control

IP Version

IPv4, IPv6

Servicios

DHCP, Dynamic DNS, IGMP Proxy UPnP, MU-MIMO, QOS, Preset, Easymesh

VPN Pass-through

PPTP, L2TP, Ipsec Pass-through

Firewall

ALG, IP Filter, Port Filter, MAC Filter, URL Filter Port Forwarding, DMZ, DDOS

IPv6

Radvd, DHCPv6, MLD Proxy, MLD Snooping

Diagnostics

Ping, Ping6, Tracert, Tracert6

TR069

ACS, Connection request

VoIP

Main Proxy, Black Proxy, SIP Advanced, Forward Mode, Speed Dial, Dial Plan , Codec, Hotline, DND, Alarm

Wireless

Frequency

2.4GHz & 5GHz

Bandwidth

2.4G :20M/40M

5G: 20M/40M/80M

Channel Range

2.4G : CH1-CH13

5G : CH36-CH48, CH149-CH165

Antenna

4 *6 dBi Antenna

Easy Client Setup

WPS

Speed

11n 300M + 11ax 1201M

Transmission Power

2.4G: <25.5 dBm(EIRP)

5G: <22.5dBm(EIRP)

Wireless Functions

Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics, Beamforming,OFDMA, MU-MIMO

Wireless Security

64/128-bit WEP, WPA / WPA2/ WPA3

SSIDs

Main SSID at 2.4Ghz and 5GHz

4 Guest SSIDs Both At 2.4GHz and 5GHz

Max Terminal Linked

32 at both 2.4GHz and 5GHz

Environment

Operation Temperature

0°c ~ 45°c

Storage Temperature

-40°c ~ 70°c

Operating Humidity

10% ~ 95% （Non-condensing）

Storage Humidity

5% ~ 90% (Non-condensing)

Others

Package Contents

1*HG15, 1* Power adapter, 1* User manual, 1* RJ45 cable, 1*RJ11 cable

Certification

CE, FCC , RoHS，Anatel
