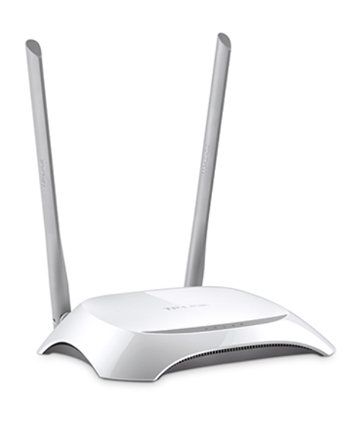

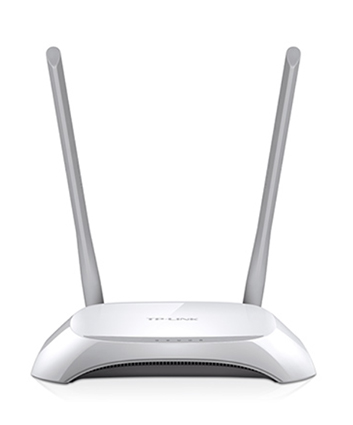

300Mbps Wireless N Router

TL-WR840N

300Mbps wireless transmission rate ideal for both bandwidth sensitive tasks and basic work

Easy wireless security encryption at a push of WPS button

IP based bandwidth control allows administrators to determine how much bandwidth is allotted to each PC

WDS wireless bridge provides seamless bridging to expand your wireless network

ARDWARE FEATURES

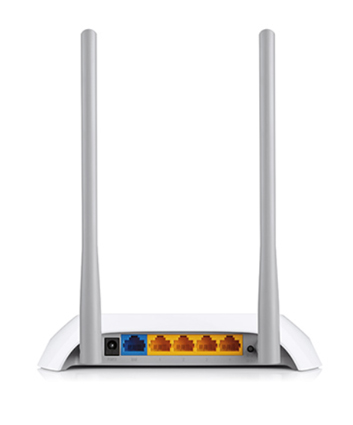

Interface 4 10/100Mbps LAN PORTS

1 10/100Mbps WAN PORT

Button WPS/RESET Button

Antenna 2 Antennas

External Power Supply 9VDC / 0.6A

Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Dimensions ( W x D x H ) 7.2 x 5.0 x 1.4in.(182 x 128 x 35 mm)

WIRELESS FEATURES

Frequency 2.4-2.4835GHz

Signal Rate 11n: Up to 300Mbps(dynamic)

11g: Up to 54Mbps(dynamic)

11b: Up to 11Mbps(dynamic)

Reception Sensitivity 270M: -68dBm@10% PER

130M: -68dBm@10% PER

108M: -68dBm@10% PER

54M: -68dBm@10% PER

11M: -85dBm@8% PER

6M: -88dBm@10% PER

1M: -90dBm@8% PER

Transmit Power CE:

<20dBm

FCC:

<30dBm

Wireless Functions Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics

Wireless Security 64/128-bit WEP, WPA / WPA2,WPA-PSK / WPA2-PSK

SOFTWARE FEATURES

Quality of Service WMM, Bandwidth Control

WAN Type Dynamic IP/Static IP/PPPoE/

PPTP/L2TP

Management Access Control

Local Management

Remote Management

DHCP Server, Client, DHCP Client List,

Address Reservation

Port Forwarding Virtual Server,Port Triggering, UPnP, DMZ

Dynamic DNS DynDns, Comexe, NO-IP

VPN Pass-Through PPTP, L2TP, IPSec (ESP Head)

Access Control Parental Control, Local Management Control, Host List, Access Schedule, Rule Management

Firewall Security DoS, SPI Firewall

IP Address Filter/MAC Address Filter/Domain Filter

IP and MAC Address Binding

Protocols Support IPv4 and IPv6

Guest Network 2.4GHz Guest Network x1

OTHERS

Certification CE, RoHS

Package Contents Wireless N Router TL-WR840N

Power supply unit

Resource CD

Ethernet Cable

Quick Installation Guide

System Requirements Windows 2000/XP/Vista™, Windows 7, Windows 8, Windows 8.1, Windows 10 or Mac OS or Linux-based operating system

Environment Operating Temperature: 0℃~40℃ (32℉~104℉)

Storage Temperature: -40℃~70℃ (-40℉~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
