DS1024G

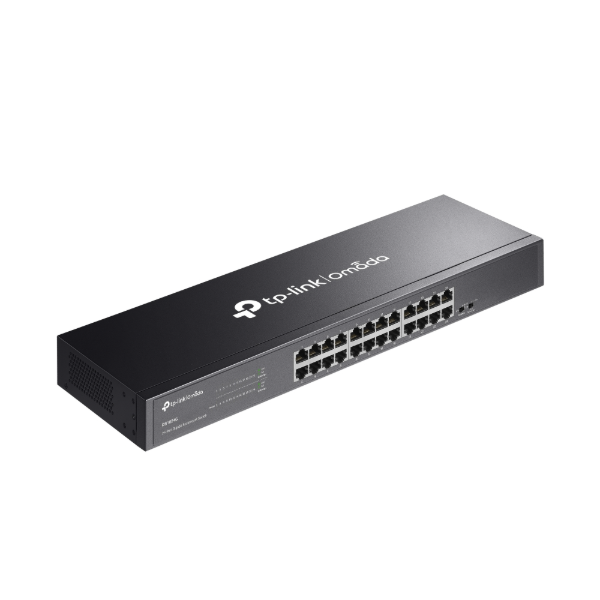

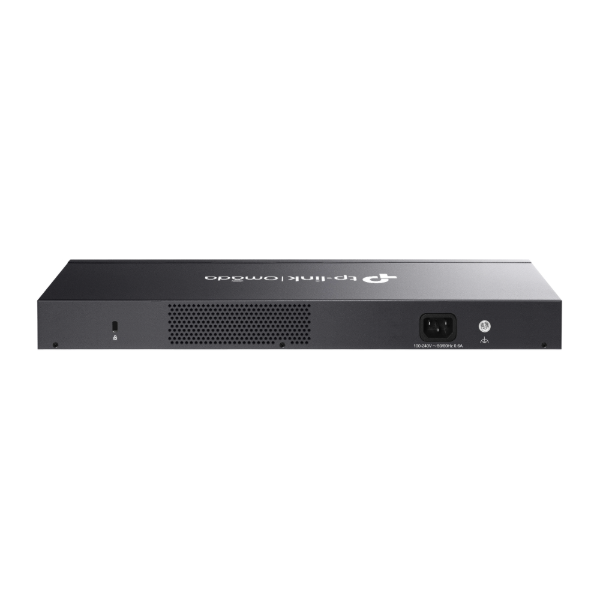

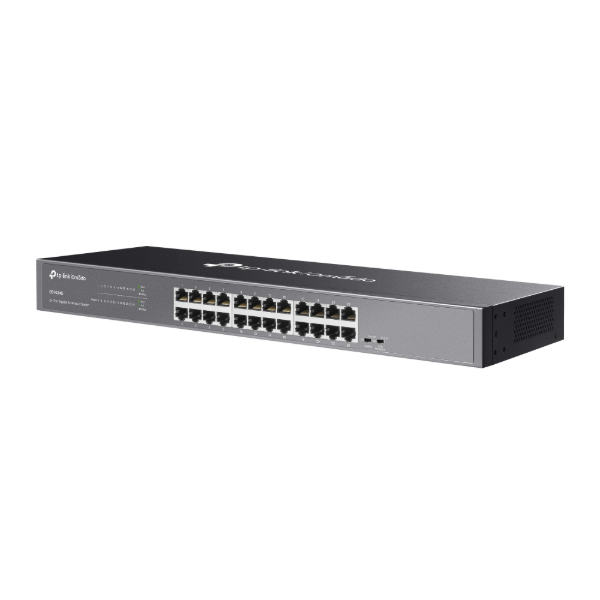

Omada 24-Port Gigabit Unmanaged Rackmount Switch

• 24 puertos RJ45 de 10/100/1000 Mbps

• Compatible con autoaprendizaje de direcciones MAC y auto MDI/MDIX

• Caja de acero estándar de 19 pulgadas para montaje en rack

• El modo de aislamiento permite separar el tráfico de clientes con un solo clic para mayor seguridad y rendimiento

• Supervisa y soluciona problemas relacionados con bucles en la red para evitar interrupciones causadas por el looping

• Plug and Play: no requiere configuración ni gestión centralizada

ESPECIFICACIONES

HARDWARE FEATURES

Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x

Interface 24× 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)

Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

• 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)

Fan Quantity Fanless

Physical Security Lock Yes

Power Supply 100-240VAC, 50/60Hz

Dimensions ( W x D x H ) 17.3 × 5.5 × 1.7 in (440 × 140 × 44 mm)

Mounting Rack Mountable

Max. Power Consumption 13.62W

Max. Heat Dissipation 46.44BTU/h

PERFORMANCE

Switching Capacity 48Gbps

Packet Forwarding Rate 35.7Mpps

MAC Address Table 8K

Jumbo Frame 10KB

SOFTWARE FEATURES

Advanced Features

• Isolation Mode: Ports 1-22

• Loop Prevention: Ports 1-24

• 802.1P/DSCP QoS

• Green Ethernet technology

Transmission Method

Store and Forward

OTHERS

Certification

FCC, CE, RoHS

Package Content

• DS1024G

• Power Cord

• Installation Guide

• Rackmount Kits

• Rubber Feet

Environment

• Operating Temperature: 0℃~40℃ (32℉~104℉);

• Storage Temperature: -40℃~70℃ (-40℉~158℉);

• Operating Humidity: 10%~90% non-condensing;

• Storage Humidity: 5%~90% non-condensing
