DS108G

Omada 8-Port Gigabit Unmanaged Desktop Switch

• 8 puertos RJ45 de 10/100/1000 Mbps con auto-negociación y soporte Auto-MDI/MDIX

• Tecnología Green Ethernet que reduce el consumo de energía

• Control de flujo IEEE 802.3x para una transferencia de datos confiable

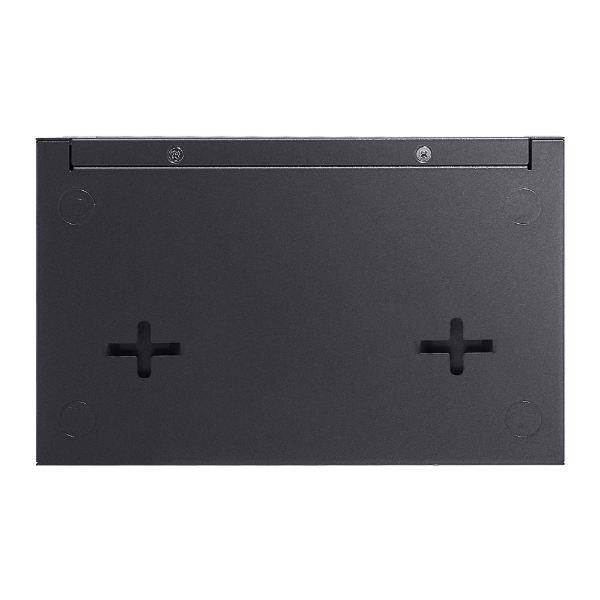

• Carcasa de acero con diseño para escritorio o montaje en pared

• Compatible con 802.1p/DSCP QoS y función IGMP Snooping

• Plug and Play: no requiere configuración

• Supervisa y soluciona problemas relacionados con bucles en la red para evitar interrupciones causadas por el looping

ESPECIFICACIONES:

HARDWARE FEATURES

Standards and Protocols IEEE 802.3i / 802.3u / 802.3ab/ 802.3x /802.1p

Interface 8× 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX

Fan Quantity Fanless

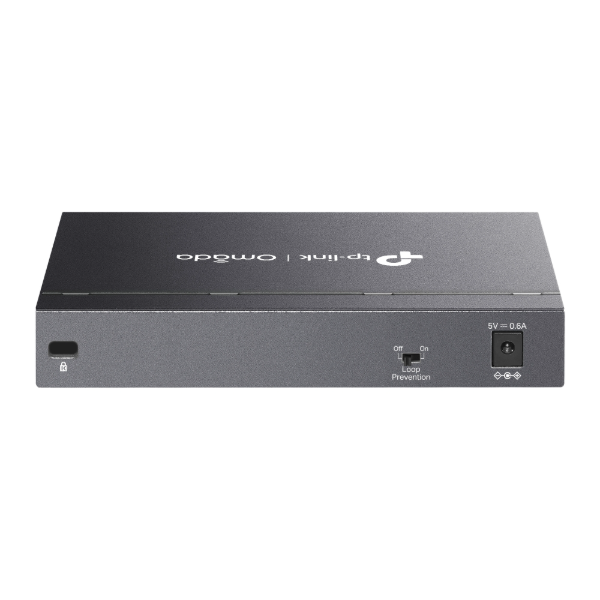

External Power Supply External Power Adapter (Output: 5 V DC / 0.6 A) LED

• Power

• Link/Act indicators per port built into each RJ-45 port

Dimensions ( W x D x H ) 6.2 x 4.0 x 1.0 in. (158 x 101 x 25 mm)

Max. Power Consumption 3.92 W(220 V /50 Hz)

Max. Heat Dissipation 13.37 BTU/h

PERFORMANCE

Packet Forwarding Rate 11.9 Mpps

MAC Address Table 4K

Packet Buffer Memory 1.5 Mb

Jumbo Frame 16 KB

SOFTWARE FEATURES

Advanced Features

• Green Ethernet technology

• 802.3X Flow Control

• 802.1p/DSCP QoS

• IGMP Snooping

• Loop Prevention

Transmission Method

Store and Forward

OTHERS

Certification CE, FCC ,RoHS

Package Content

• DS108G

• Power Adapter

• Installation Guide

Environment

• Operating Temperature: 0°C~40°C (32°F~104°F)

• Storage Temperature: -40°C~70°C (-40°F~158°F)

• Operating Humidity: 10% ~ 90%, non-condensing

• Storage Humidity: 5%~90% non-condensing
