MU6H

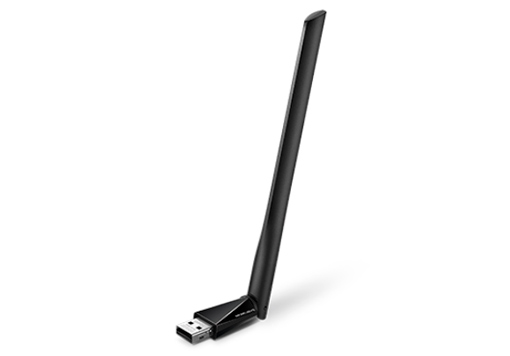

AC650 High Gain Wireless Dual Band USB Adapter

High-Speed Dual-Band Wi-Fi: 256-QAM support increases the 2.4 GHz data rate from 150 Mbps to 200 Mbps. Enjoy speeds of up to 200 Mbps on the 2.4 GHz band and 433 Mbps on the 5 GHz band, to take full advantage of your AC Wi-Fi.

High-Gain Antenna: A 5dBi high-gain antenna greatly enhances the reception and transmission strength of the USB adapter

Internal Driver: Smart easy-install for Windows operating system

Supports the Latest Operating Systems: Fully compatible with Windows 10/8.1/8/7/XP

Wireless

Wireless Standards

IEEE 802.11b/g/n

IEEE 802.11a/n/ac

Frequency

2400 MHz -2483.5 MHz

5150 MHz -5250 MHz

5250 MHz -5350 MHz

5470 MHz -5725 MHz

Signal Rate

• 11ac: Up to 433Mbps (Dynamic)

• 11n: Up to 200Mbps (Dynamic)

Reception Sensitivity

• 433M: -62dBm@10% PER

• 200M: -65dBm@10% PER

• 54M: -75 dBm@10% PER

• 11M: -90 dBm@8% PER

Wireless Security

WEP, WPA/WPA2,

WPA-PSK/ WPA2-PS,

802.1X

Hardware

Dimensions (W X D X H)

2.28 × 0.66 × 6.83 in

(57.8 × 16.8 × 173.4 m)

Interfaces

USB 2.0

Antenna Type

1 External High Gain

5dBi Antenna

LED

Estado

Others

Package Contents

1. AC650 High Gain Wireless Dual Band USB Adapter ( MU6H )

2. Quick Installation Guide

System Requirements

Windows10/8.1/8/7/XP
