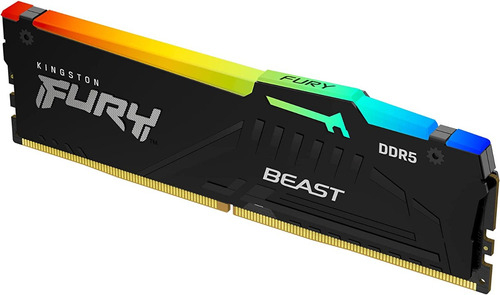

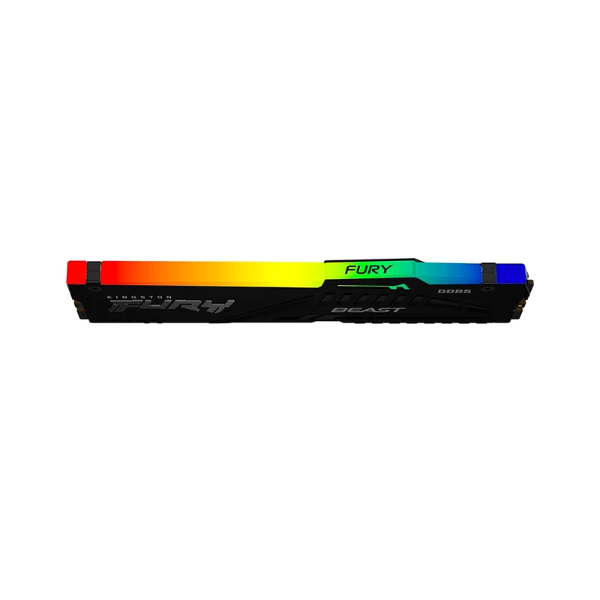

Memoria PC DDR5 16Gb 5600mhz Black Gamer RGB Kingston Fury Beast (KF556C40BBA-16)

KF556C40BBA-16

16GB 2G x 64-Bit

DDR5-5600 CL40 288-Pin DIMM

DESCRIPTION

Kingston FURY KF556C40BBA-16 is a 2G x 64-bit (16GB)

DDR5-5600 CL40 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module.

The module supports Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Each module has been tested to run at DDR5-5600 at a low latency timing of 40-40-40 at 1.25V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:

SPECIFICATIONS

CL(IDD): 40 cycles

Row Cycle Time (tRCmin): 48ns(min.)

Refresh to Active/Refresh: 295ns(min.)

Command Time (tRFCmin)

Row Active Time (tRASmin): 32ns(min.)

UL Rating: 94 V - 0

FEATURES

• Power Supply: VDD = 1.1V Typical

• VDDQ = 1.1V Typical

• VPP = 1.8V Typical

• VDDSPD = 1.8V to 2.0V

• On-Die ECC

• Height 1.66” (42.23mm), w/heatsink
