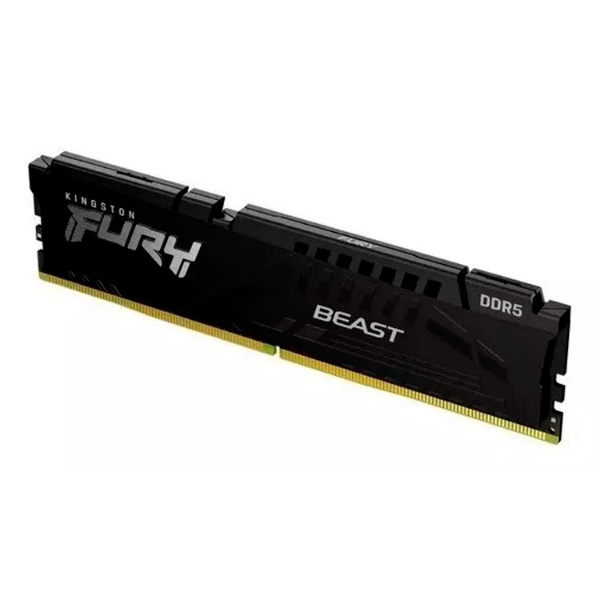

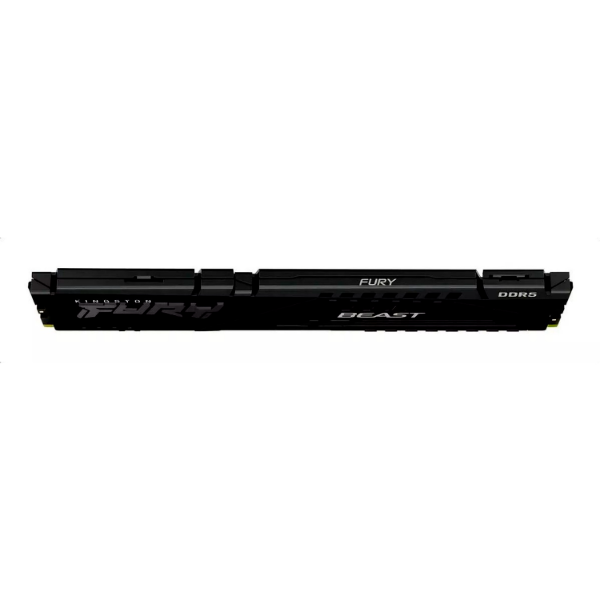

Memoria PC DDR5 16Gb 6000mhz Black Gamer Kingston Fury Beast (KF560C36BBE2-16)

KF560C36BBE2-16

16GB 2G x 64-Bit

DDR5-6000 CL36 288-Pin DIMM

DESCRIPTION

Kingston FURY KF560C36BBE2-16 is a 2G x 64-bit (16GB) DDR5-6000 CL36 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module.

The module supports AMD® EXPO v1.1 and Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Each module has been tested to run at DDR5-6000 at a low latency timing of 36-44-44 at 1.35V. The SPDs are programmed to JEDEC standard latency

DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical And mechanical specifications are as follows:

DEFAULT SPECIFICATIONS

CL(IDD): 40 cycles

Row Cycle Time (tRCmin): 48ns(min.)

Refresh to Active/Refresh: 295ns(min.)

Command Time (tRFCmin)

Row Active Time (tRASmin): 32ns(min.)

Operating Temperature: 0oC to +85oC

Storage Temperature: -55oC to +100oC

DEFAULT FEATURES

• Power Supply: VDD = 1.1V Typical

• VDDQ = 1.1V Typical

• VPP = 1.8V Typical

• VDDSPD = 1.8V to 2.0V

• On-Die ECC

• Height 1.37” (34.9mm), w/heatsink
