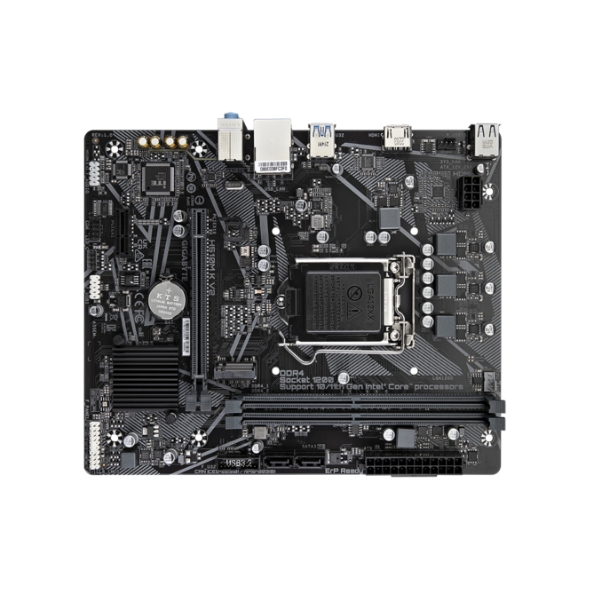

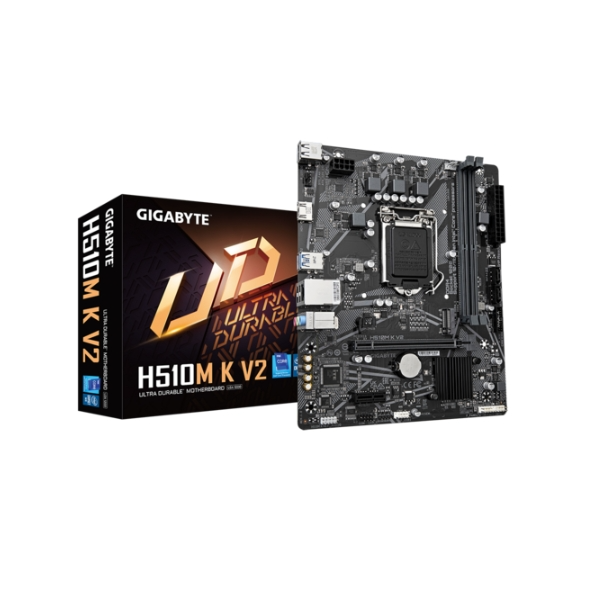

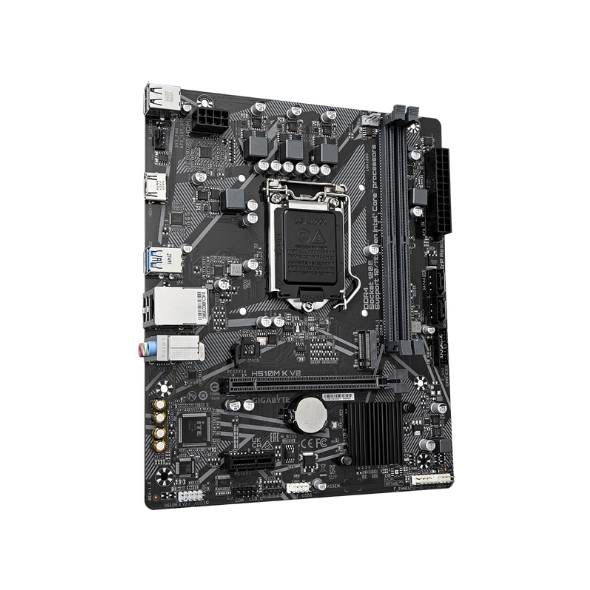

Placa base Intel® Ultra Durable con LAN GbE, resistencia antiazufre y ventilador inteligente 5

- Compatible con procesadores Intel ® Core™ de 11.ª y 10.ª generación

- DDR4 de doble canal sin ECC y sin búfer, 2 DIMM

- Audio HD de 8 canales con condensadores de audio de alta calidad

- Conector NVMe PCIe Gen3 x4 2280 M.2

- LAN GbE con gestión de ancho de banda

- Smart Fan 5 cuenta con múltiples sensores de temperatura y cabezales de ventilador híbridos con FAN STOP

- GIGABYTE APP Center, uso sencillo y fácil

- Diseño de resistencias antiazufre

Especificaciones:

Procesador

LGA1200 package:

11th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors

10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors

L3 cache varies with CPU

Chipset

Intel® H470 Express Chipset

Memoria

11th Generation Intel® Core™ i9/i7/i5 processors:

Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules

10th Generation Intel® Core™ i9/i7 processors:

Support for DDR4 2933/2666/2400/2133 MT/s memory modules

10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:

Support for DDR4 2666/2400/2133 MT/s memory modules

2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Gráfica Integrada

Integrated Graphics Processor-Intel® HD Graphics support:

1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz

* Support for HDMI 1.4 version and HDCP 2.3.

(Graphics specifications may vary depending on CPU support.)

Audio

Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

LAN

Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Zócalos de Expansión

CPU:

1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16

Chipset:

1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Interfaz de almacenamiento

Chipset:

1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)

2 x SATA 6Gb/s connectors

RAID 0, RAID 1, and RAID5 support for NVMe SSD storage devices

* Supported with an additional PCIe to M.2 NVMe SSD adapter card

RAID 0, RAID 1, and RAID5 support for SATA storage devices

USB

Chipset:

4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Conectores Internos E/S

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x system fan header

1 x RGB LED strip header

1 x M.2 Socket 3 connector

2 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

1 x USB 2.0/1.1 header

1 x serial port header

1 x Clear CMOS jumper

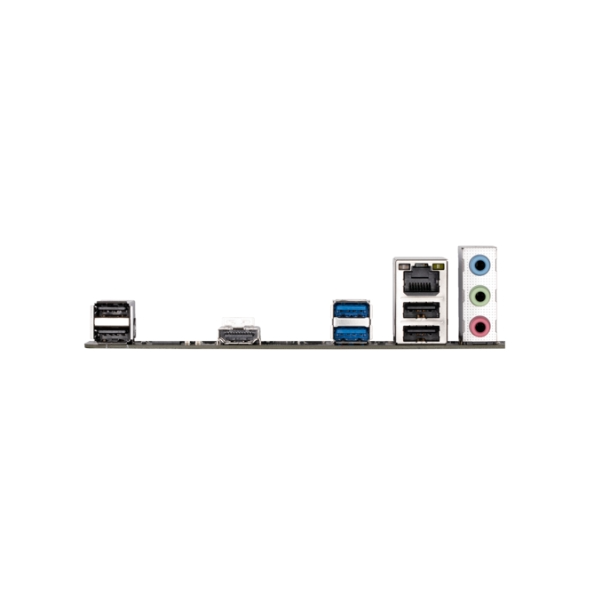

Panel E/S Trasero

1 x HDMI port

2 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks

Controlador E/S

iTE® I/O Controller Chip

Monitorización Hardware

Voltage detection

Temperature detection

Fan speed detection

Fan fail warning

Fan speed control

* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS

1 x 128 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Otras Características

Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

@BIOS

Ambient LED

EasyTune

Smart Backup

System Information Viewer

Support for Q-Flash

Support for Xpress Install

Bundled Software

Norton® Internet Security (OEM version)

LAN bandwidth management software

Sistema Operativo

Support for Windows 11 64-bit

Support for Windows 10 64-bit

Formato

Micro ATX Form Factor; 22.6cm x 18.5cm
