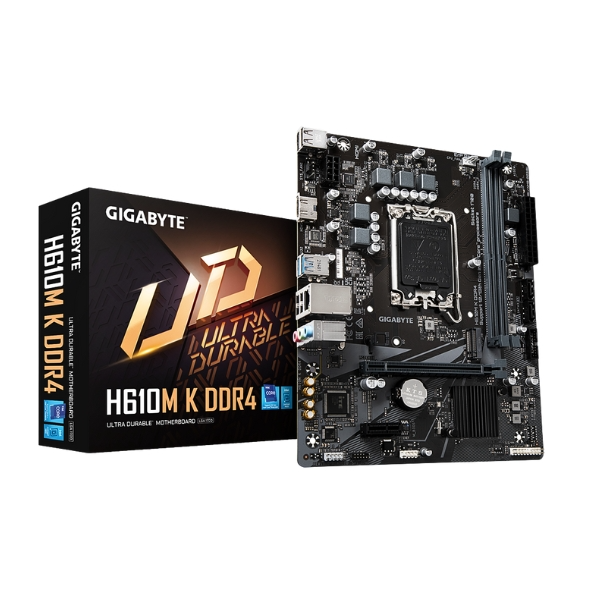

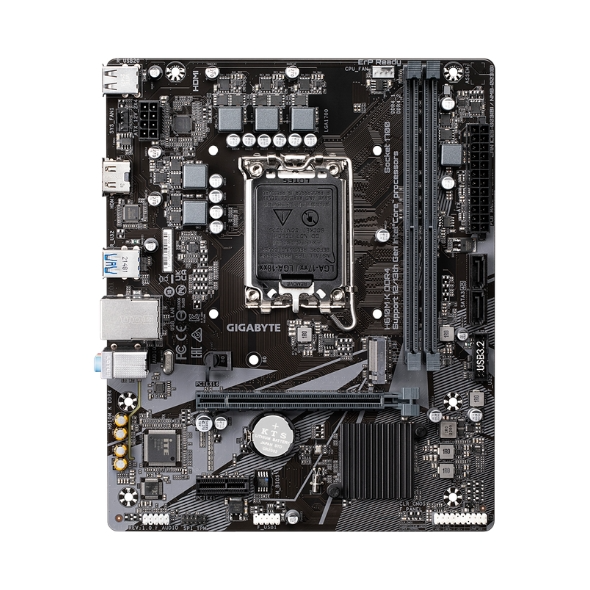

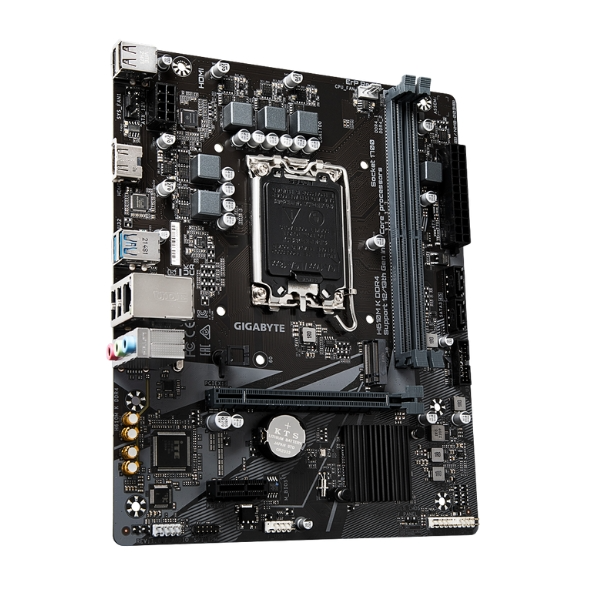

Placa Mother Gigabyte H610M K DDR4 rev 2.0 Intel 12va a 14va Gen Lga1700 DDR4 mATX

H610M K DDR4 (rev. 2.0)

PCIe 4.0* Design, Gen3 x4 M.2, GbE LAN, Anti-Sulfur Resistor, Smart Fan 6

✔️ Compatible con procesadores Intel® Core™ 14ª / 13ª / 12ª gen

✔️ DDR4 Dual Channel (No-ECC, Unbuffered) – 2 slots DIMM

✔️ LAN GbE con gestión de ancho de banda

✔️ Slot M.2 NVMe PCIe 3.0 x4 para almacenamiento ultrarrápido

✔️ Condensadores de audio premium y protección contra ruido

✔️ Smart Fan 6: sensores de temperatura y FAN STOP

✔️ Resistencias anti-azufre para mayor durabilidad

✔️ GIGABYTE APP Center – Fácil de usar

✔️ Anti-Sulfur Resistors Design​

Especificaciones:

Procesador

LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors

L3 cache varies with CPU

Chipset

Intel® H610 Express Chipset

Memoria

Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules

2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Gráficos Integrados

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.

** Support native HDMI 2.1 TMDS compatible ports.

Audio

Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

LAN

Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)

Puertos de Expansión

CPU:

1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

Chipset:

1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Interfaz de Almacenamiento

Chipset:

1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)

2 x SATA 6Gb/s connectors

USB

Chipset:

4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)/li>

6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)/li>

Conectores Internos de E/S

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x system fan header

1 x M.2 Socket 3 connector

2 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

1 x USB 2.0/1.1 header

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)

1 x Clear CMOS jumper

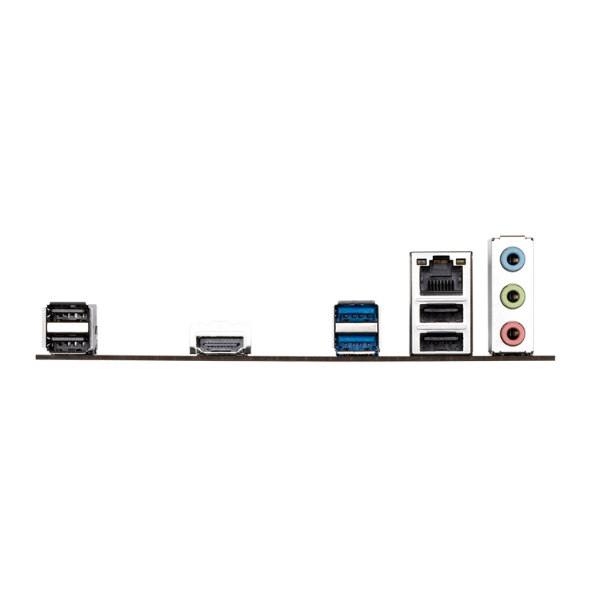

Conectores del Panel Trasero

1 x HDMI port

2 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks

Controlador de E/S

iTE® I/O Controller Chip

Monitorización H/W

Voltage detection

Temperature detection

Fan speed detection

Water cooling flow rate detection

Fan fail warning

Fan speed control

* Whether the fan speed control function is supported will depend on the fan you install

BIOS

1 x 128 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Características Únicas

Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

@BIOS

EasyTune

Smart Backup

System Information Viewer

Support for Q-Flash

Software Incluido

Norton® Internet Security (OEM version)

LAN bandwidth management software

Sistema Operativo

Support for Windows 11 64-bit

Support for Windows 10 64-bit

Diseño

Micro ATX Form Factor; 22.6cm x 18.5cm
