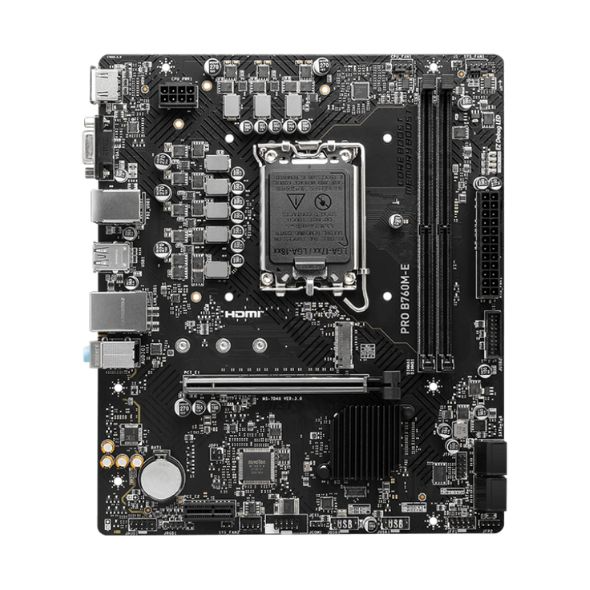

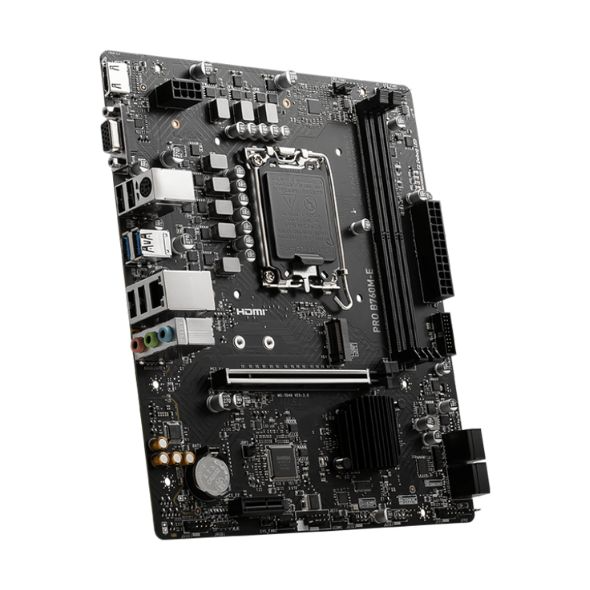

PRO B760M-E | MSI

- Chipset INTEL B760

- CPU Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors

LGA 1700

- Memory 2x DDR5, Maximum Memory Capacity 128GB

Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC)

Max. overclocking frequency:

• 1DPC 1R Max speed up to 6400+ MHz

- Onboard Graphics 1x HDMI™

Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz*

1x VGA

Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

- Slot 1x PCI-E x16 slot

1x PCI-E x1 slot

PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

- Audio Realtek® ALC897 Codec

7.1-Channel High Definition Audio

- Storage 1x M.2

M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

4x SATA 6G

* SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.

- RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

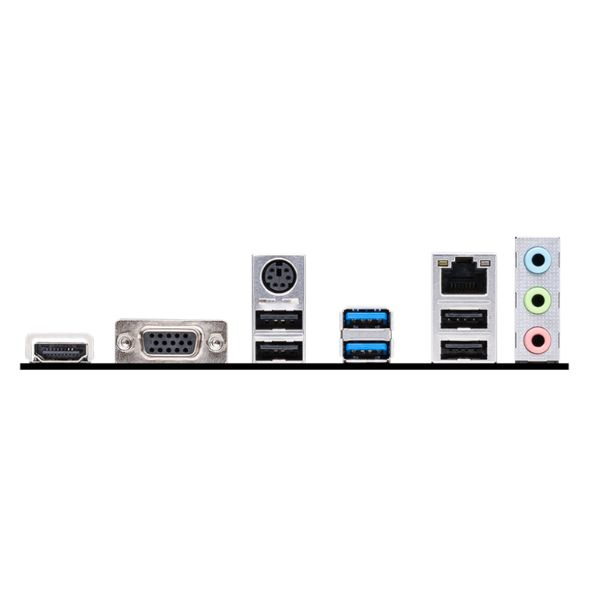

- 4x USB 2.0 (Rear)

4x USB 2.0 (Front)

2x USB 5Gbps Type A (Rear)

2x USB 5Gbps Type A (Front)

- LAN Realtek® RTL8111H Gigabit LAN

- Internal IO 1x Power Connector(ATX_PWR)

1x Power Connector(CPU_PWR)

1x CPU Fan

2x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Com Port (JCOM)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

2x USB 5Gbps Type A ports

- LED FEATURE 4x EZ Debug LED

- OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit

- PCB Info mATX

200mmx236.16mm
