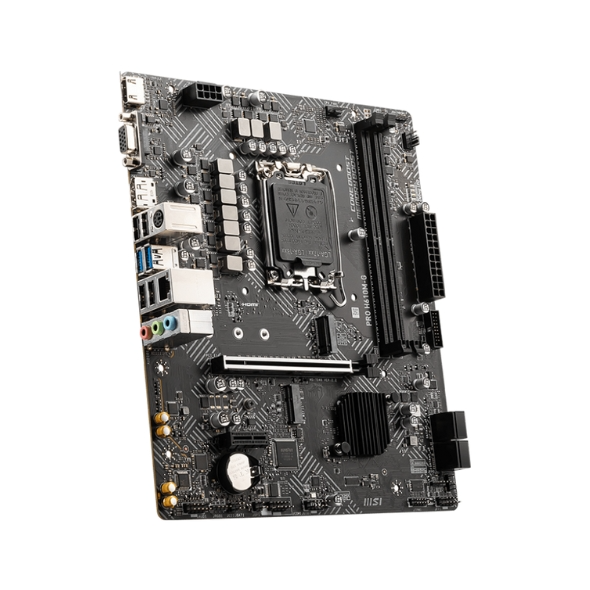

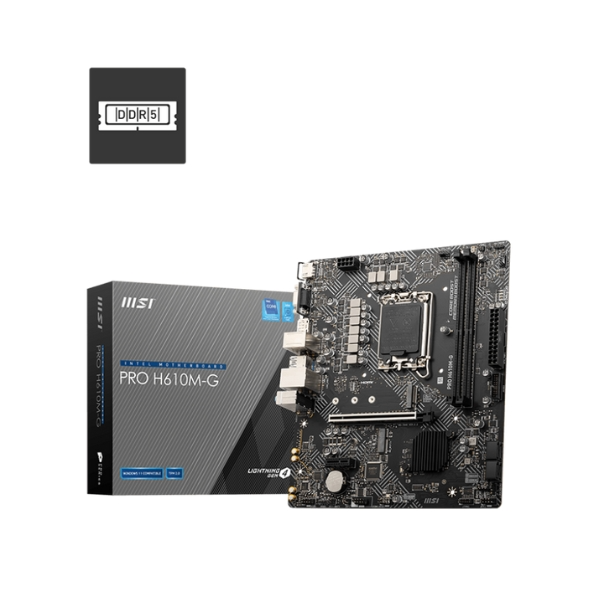

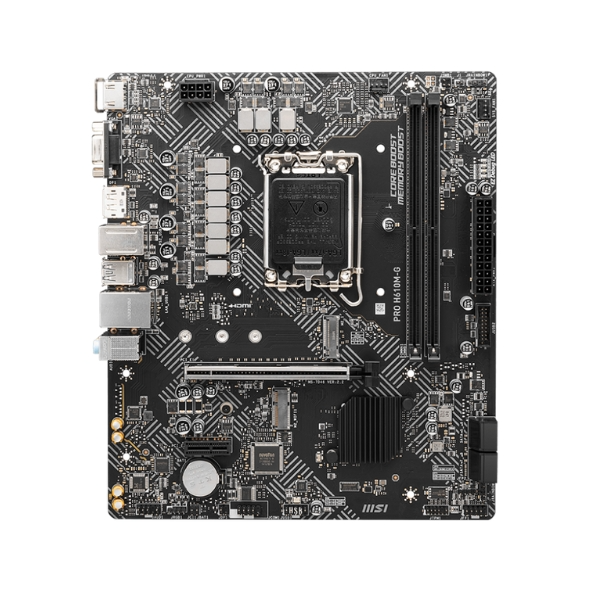

Placa Mother MSI PRO H610M-G Intel 12va Gen Lga1700 DDR5 mATX

Chipset INTEL H610

CPU Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors

LGA 1700

Memory 2x DDR5, Maximum Memory Capacity 96GB

Memory Support DDR5 5600 MHz (by JEDEC & POR)

Supports Intel® XMP 3.0 OC

Supports Dual-Controller Dual-Channel mode

Supports non-ECC, un-buffered memory

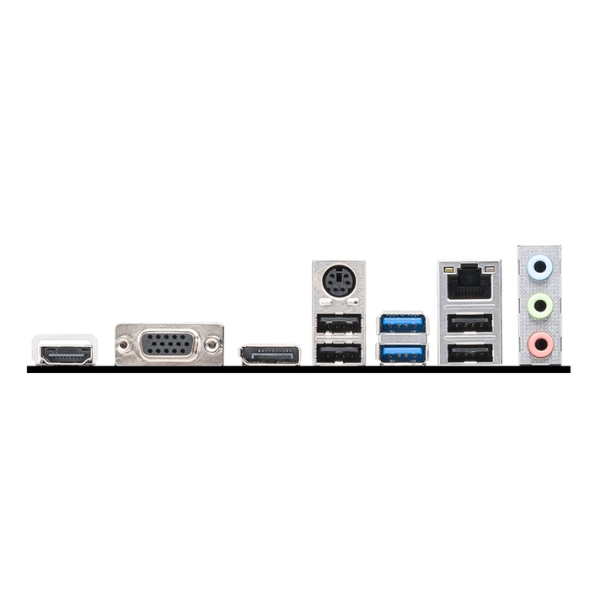

Onboard Graphics 1x HDMI™

Support HDMI™ 2.1, maximum resolution of 4K 60Hz*

1x DisplayPort

Support DP 1.4, maximum resolution of 4K 60Hz*

1x VGA

Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

Slot 1x PCI-E x16 slot

1x PCI-E x1 slot

PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

1x M.2 slot with E-key for PCIe WiFi module only

Audio Realtek® ALC897 Codec

7.1-Channel High Definition Audio

Storage 1x M.2

M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices

4x SATA 6G

* SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.

USB 4x USB 2.0 (Rear)

2x USB 2.0 (Front)

2x USB 5Gbps Type A (Rear)

2x USB 5Gbps Type A (Front)

LAN Intel® I219V 1Gbps LAN controller

Internal IO 1x Power Connector(ATX_PWR)

1x Power Connector(CPU_PWR)

1x CPU Fan

1x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Com Port (JCOM)

2x Addressable RGB LED connector(JRAINBOW)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

2x USB 2.0 ports

2x USB 5Gbps Type A ports

LED FEATURE 4x EZ Debug LED

OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit

PCB Info mATX

211mmx243.84mm
