Placa Mother MSI A520M-A PRO AMD Ryzen 3ra y 5ta Gen AM4 DDR4 mATX

3gen AMD Ryzen desktop processor compatible, NOT COMPATIBLE with AMD Ryzen 5 3400G & AMD Ryzen 3 3200g proceesors

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

2Oz Thickened Copper PCB

An enhanced PCB design improves heat dissipation and performance reliability

CPU

Support 3rd Gen AMD Ryzen™ Desktop Processors and AMD Ryzen™4000 G-Series Desktop Processors

Chipset

AMD A520 Chipset

Memory

2x DDR4 memory slots, support up to 64GB 1

Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC

Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE

1DPC 1R max speed 4600 MHz

1DPC 2R max speed 3866 MHz

Dual channel memory architecture

Supports non-ECC UDIMM memory

Supports ECC UDIMM memory (non-ECC mode)

Supports un-buffered memory

Please refer www.msi.com for more information on compatible memory.

Expansion Slot

1x PCIe 3.0 x1 slot 1

1x PCIe x16 slot

The supported specification depends on installed processor.

Onboard Graphics

1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz12

1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1

Maximum shared memory of 16 GB

Available for the processor with integrated graphics.

Graphics specifications may vary depending on the CPU installed.

Storage

AMD A520 Chipset

4x SATA 6Gb/s ports

1x M.2 slot (Key M) (from AMD Processor)

Supports PCIe 3.0 1

Supports SATA 6Gb/s

Supports 2242/ 2260/ 2280 storage devices

RAID

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB

AMD A520 Chipset

2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector

6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

AMD Processor

4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

Audio

Realtek® ALC892/ALC897 Codec

7.1-Channel High Definition Audio

LAN

1x Realtek® RTL8111H Gigabit LAN controller

Internal connectors

1x 24-pin ATX main power connector

1x 4-pin ATX 12V power connector

4x SATA 6Gb/s connectors

1x M.2 slots (M-Key)

1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)

2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

1x 4-pin CPU fan connector

1x 4-pin system fan connectors

1x Front panel audio connector

2x System panel connectors

1x Chassis Intrusion connector

1xTPM module connector

1x Clear CMOS jumper

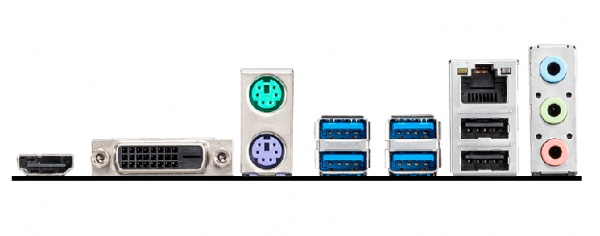

Back panel ports

LAN port

HDMI

DVI-D

Keyboard / Mouse

USB 3.2 Gen 1 5Gbps Type-A

USB 3.2 Gen 1 5Gbps Type-A

USB 2.0 Ports

Audio Connectors

Dimensions

Micro-ATX Form Factor

9.3 in. x 7.9 in. (23.6 cm x 20 cm)

MOUNTING

8 mounting holes

Box content

MSI A520M-A PRO package content
