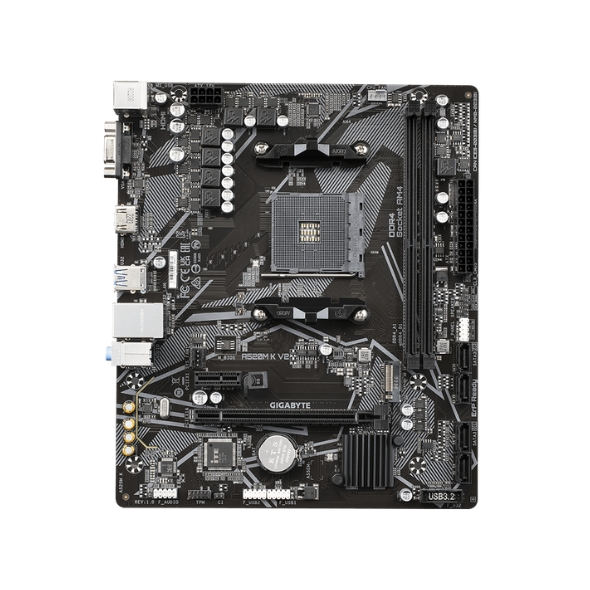

Placa Mother Gigabyte Prime A520M K V2 (rev. 1.1) AMD Ryzen 3ra y 5ta Gen AM4 DDR4 mATX

A520M K V2 (rev. 1.1)

• Compatible con procesadores AMD Ryzen™ serie 5000/Ryzen™ serie 5000 G/Ryzen™ serie 4000 G y Ryzen™ 3000 y Ryzen™ serie 3000 G

• DDR4 sin búfer ECC/no ECC de doble canal, 2 DIMM

• PCIe Gen3 x4 M.2 con compatibilidad con modos PCIe NVMe y SATA

• LAN GbE con gestión de ancho de banda

• Audio HD de 8 canales con capacitores de audio de alta calidad

• HDMI trasero y D-sub para compatibilidad con múltiples pantallas

• Smart Fan 5 cuenta con múltiples sensores de temperatura, cabezales de ventilador híbridos con función FAN STOP

• GIGABYTE APP Center, uso sencillo y fácil

Especificaciones

Procesador

AMD Socket AM4, support for: AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors

Chipset

AMD A520

Memoria

2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory

Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Gráficos Integrados

Integrated Graphics Processor:

1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version, HDCP 2.3, and HDR.

Maximum shared memory of 16 GB

Audio

Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

LAN

Realtek® GbE LAN chip (1 Gbps/100 Mbps)

Puertos de Expansión

CPU:

1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16

Chipset:

1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Interfaz de Almacenamiento

CPU:

1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)

Chipset:

4 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, and RAID 10

USB

CPU:

4 x USB 3.2 Gen 1 ports on the back panel

Chipset:

2 x USB 3.2 Gen 1 ports available through the internal USB header

6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Conectores Internos de E/S

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x system fan header

1 x M.2 Socket 3 connector

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

1 x speaker header

1 x Clear CMOS jumper

1 x chassis intrusion header

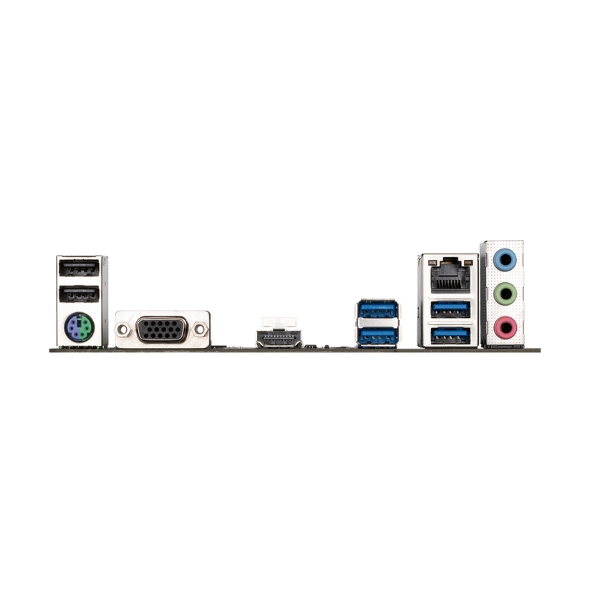

Conectores del Panel Trasero

1 x PS/2 keyboard/mouse port

1 x D-Sub port

1 x HDMI port

4 x USB 3.2 Gen 1 ports

2 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks

Controlador de E/S

iTE® I/O Controller Chip

Monitorización H/W

Voltage detection

Temperature detection

Fan speed detection

Fan fail warning

Fan speed control

* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS

1 x 128 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Características Únicas

Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

@BIOS

EasyTune

Smart Backup

System Information Viewer

Support for Q-Flash

Support for Xpress Install

Software Incluido

Norton® Internet Security (OEM version)

LAN bandwidth management software

Sistema Operativo

Support for Windows 11 64-bit

Support for Windows 10 64-bit

Diseño

Micro ATX Form Factor; 23.3cm x 19.8cm
