• Socket AM5 de AMD: compatible con procesadores de las series AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000

• Rendimiento incomparable: Solución VRM digital de 5+2+2 fases

• DDR5 de doble canal: 4*SMD DIMM compatibles con módulos de memoria AMD EXPO™ e Intel® XMP

• Almacenamiento SuperSpeed: Conector PCIe 4.0 x4 M.2

• EZ-Latch: Ranura PCIe x16 con diseño de liberación rápida

• Redes rápidas: LAN de 2,5 GbE

• Conectividad extendida: 2*DP, HDMI

• Ventilador inteligente 6: cuenta con múltiples sensores de temperatura, cabezales de ventilador híbridos con función de parada del ventilador

• Q-Flash Plus: Actualiza la BIOS sin instalar la CPU, la memoria ni la tarjeta gráfica

Especificaciones:

Procesador

AMD Socket AM5, support for:

AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors

Chipset

AMD B650

Memoria

4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

Gráfica Integrada

Integrated Graphics Processor with AMD Radeon™ Graphics support

- 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Support for up to triple-display at the same time

(Graphics specifications may vary depending on CPU support.)

Audio

Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

LAN

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Zócalos de Expansión

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

- AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode

- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode

- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

Chipset:

- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)

Interfaz de almacenamiento

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs:

- AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x4/x2 SSDs

- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs

4 x SATA 6Gb/s connectors

RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB

CPU:

- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support

- 1 x USB 3.2 Gen 1 port on the back panel

- 1 x USB 2.0/1.1 port on the back panel

Chipset:

- 2 x USB 3.2 Gen 1 ports on the back panel

- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header

- 2 x USB 3.2 Gen 1 ports available through the internal USB header

- 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers)

Conectores Internos E/S

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

2 x system fan headers

2 x addressable LED strip headers

1 x RGB LED strip header

2 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C® header, with USB 3.2 Gen 1 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

1 x Q-Flash Plus button

1 x reset jumper

1 x Clear CMOS jumper

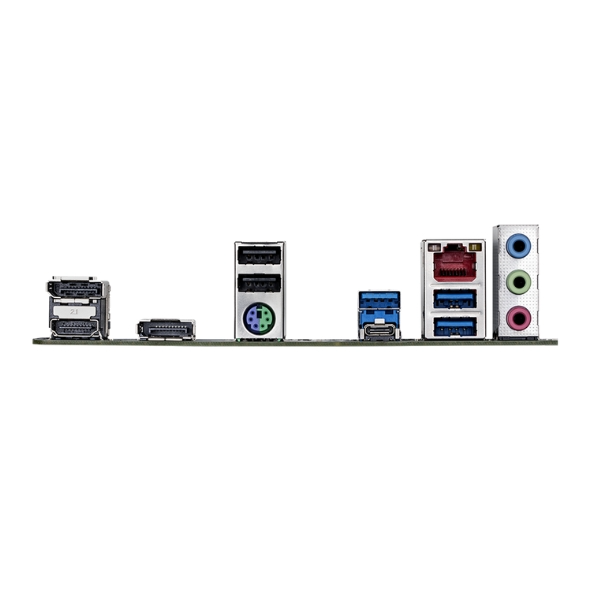

Panel E/S Trasero

1 x PS/2 keyboard/mouse port

1 x USB Type-C® port, with USB 3.2 Gen 1 support

3 x USB 3.2 Gen 1 ports

2 x USB 2.0/1.1 ports

1 x HDMI port

2 x DisplayPorts

1 x RJ-45 port

3 x audio jacks
