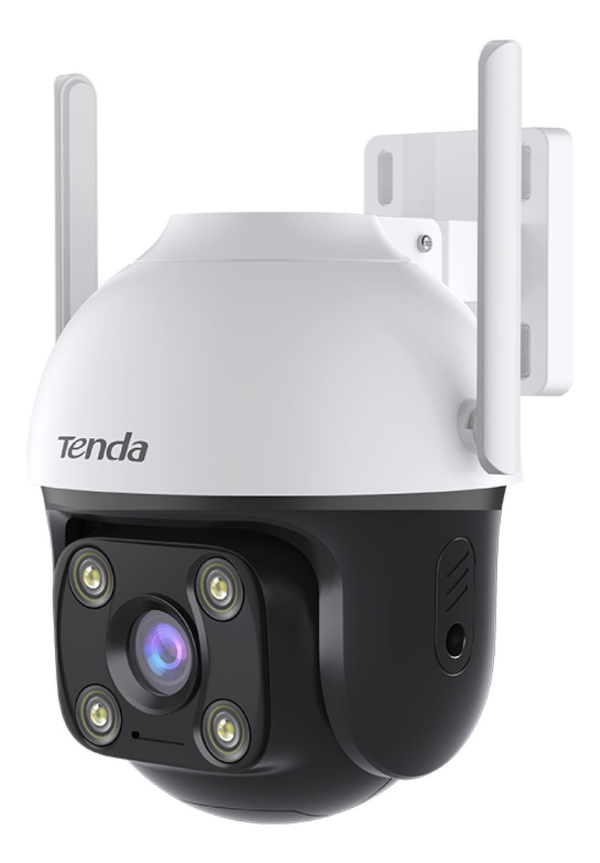

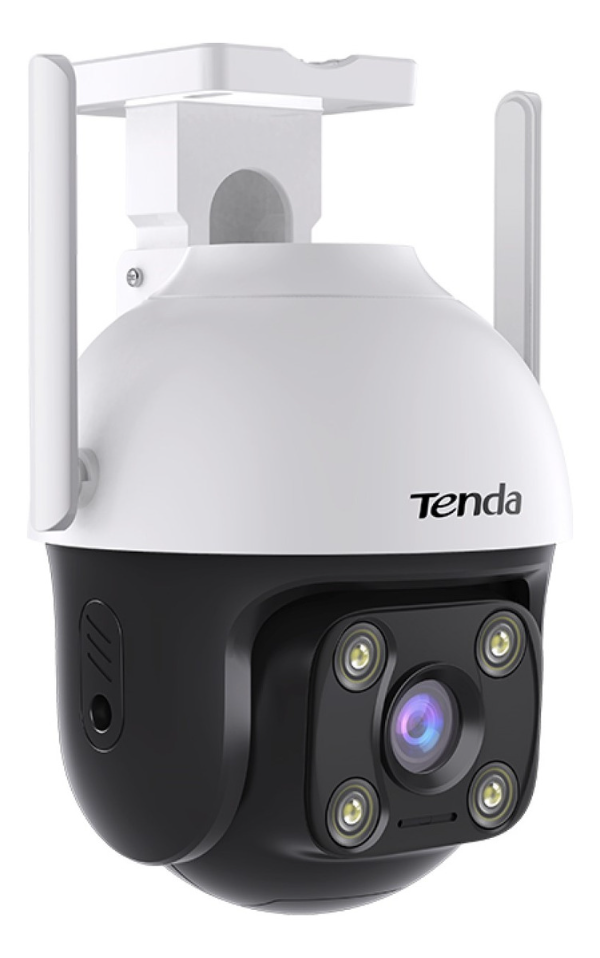

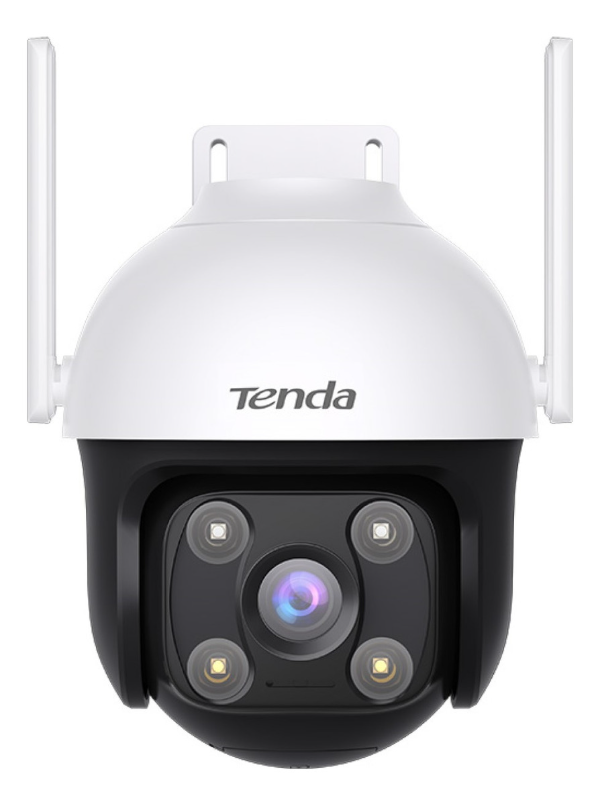

CH7-WCA V1.0 | Cámara panorámica/inclinable Wi-Fi para exteriores de 4 MP

• Resistente al agua y al polvo (IP65)

• Micrófono y altavoz integrados para audio bidireccional.

• Admite detección de movimiento, personas y vehículos, seguimiento humano, alertas de sonido y luz.

• Imágenes panorámicas de 360° de alta calidad con resolución de 4 MP y visión nocturna a todo color.

La cámara exterior con wifi y movimiento panorámico CH7-WCA es una cámara de vigilancia exterior de alto rendimiento que integra visión de 360°, visión nocturna a todo color, video de 4 MP, audio bidireccional full-duplex, detección de personas y vehículos, y alarmas sonoras y luminosas. Se utiliza principalmente para la vigilancia en exteriores, como patios, granjas, tiendas, etc. Los usuarios pueden acceder al video mediante conexión inalámbrica o por cable a internet.

Especificaciones:

Camera

Image Sensor

1/3 Progressive Scan CMOS sensor

Day and Night

ICR type

Lens

Focal Length

4 mm

Aperture

F1.6

FOV

Horizontal FOV: 83°, Vertical FOV: 44°, Diagonal FOV: 98.6°

Illuminator

Supplementary Light

4 IR Lights, 4 Spotlights

Supplementary Light Distance

Up to 30 m/100 ft (depending on environment)

IR Wavelength

850nm

Night Vision Mode

Smart Mode, Full Color Mode, Black & White Mode

Video

Video Encoding Format

H.265, H.264

Main Stream Resolution

2560 ×1440, 2304 ×1296, 1920 × 1080, 1280 × 720

Sub Stream Resolution

640 × 360, 352 × 288

Frame Rate

1-30fps, Default 20fps

Bit Rate

512kbps -- 4096kbps

Bit Rate Control

CBR,VBR

Audio

Audio Encoding Format

G.711A, G.711U, AAC

Audio Sampling Rate

8 kHz

Audio Communication

Two-way Audio, Voice Input

Imágen

Image Enhancement

DWDR, BLC, HLC, 3D DNR

Privacy Mask

4 Areas

Network

Ethernet Port

1 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port

ONVIF

Support

Protocols

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, ARP, WebSockets

Client

TDSEE (mobile phone), TDSEE STUDIO (PC)

Web Browser

Plug-in free live view: Chrome, Edge, Opera

Pan&Tilt

Pan Movement Range

0°--355°

Tilt Movement Range

0°--90°

Wi-Fi

Antenna

Dual external antennas

Wireless Standard

IEEE 802.11 b/g/n

Transmission Rate

Up to 300 Mbps

Channel Width

20/40 MHz

Modulation

DSSS/OFDM

Frequency Band

2.4GHz: 2412MHz-2472MHz(CH1-CH13)

Transmit Power

2.4GHz: <0.092W(EIRP)

Security

64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

Alarm

Smart Detection

Motion Detection, Tempering Detection, Human Detection, Vehicle Detection

Smart Linkage

Sound&light Alert, Human Tracking

DIY Audio

3 Customized Audios

Interface

Audio Input

Built-in MIC, adjustable microphone volume

Audio Output

Built-in Speaker, 77 dBA (Alarm sound at 1 meter), adjustable sound level

Storage

Built-in Micro SD Card Slot, Up to 256 GB

General

Power

12 V DC, 1A, Ø5.5mm&Ø2.1mm Power Plug

Material

Plastic

Smart Integration

Amazon Alexa

Product Dimension

138 mm x 120 mm x 187 mm (5.4'' × 4.7'' × 7.4'')

Package Dimension

167 mm x 131 mm x 251 mm (6.6'' × 5.2'' × 9.9'')

Product Weight

426g (0.94lb)

With Package Weight

840g (1.85lb)

Protection Level

IP65

Installation Method

Wall Mounting, Ceiling Mounting, Pole Mounting

Certification

CE, RoHS, FCC, RCM, UKCA

Package Contents:

Camera

Power Adapter (cord length: 3m)

Installation Template

Mounting Bracket

Mounting Accessories Kit

Waterproof Kit

Quick Installation Guide
