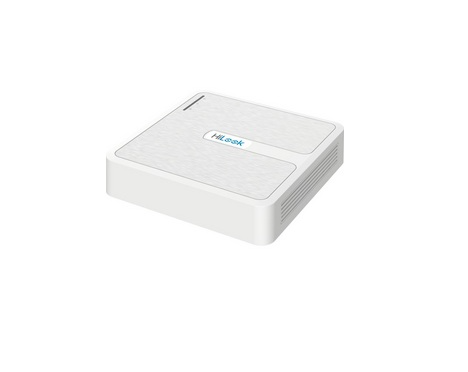

4-ch Mini 1U 4 PoE NVR

H.265+/H.265/H.264+/H.264 video compression

Up to 40 Mbps incoming bandwidth, and 60 Mbps outgoing bandwidth

Up to 4-ch network camera inputs

Up to 4-ch 1080p decoding capability

HDMI and VGA simultaneous output

Video and Audio

Entrada de vídeo IP

4-ch

Up to 6 MP resolution

Incoming Bandwidth40 Mbps

Outgoing Bandwidth60 Mbps

HDMI Output1-ch, 1920 × 1080p/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz

VGA Output1-ch, 1920 × 1080p/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz

Video Output ModeHDMI/VGA simultaneous output

Descodificación

Formato de decodificaciónH.265+/H.265/ H.264+/H.264

Resolución de grabación6 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF

Reproducción síncrona4-ch

Decodificación4-ch@1080p (30 fps) or 2-ch@4 MP (30 fps) or 1-ch@6 MP (30 fps)

Stream TypeVideo, Video & Audio

Red

Conexión remota16

Protocolo de redTCP/IP, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, SMTP, UPnP™

Interfaz de red1, RJ-45 10/100Mbps self-adaptive Ethernet interface

PoE

Interfaz4, RJ-45 10/100 Mbps self-adaptive Ethernet interface

alimentación≤ 36 W

EstándarIEEE 802.3 af/at

Auxiliary Interface

SATA1 SATA interface

CapacidadUp to 6 TB capacity for each disk

Alarma E/SN/A

Interfaz USBRear panel: 2 × USB 2.0

General

Fuente de alimentación48 VDC, 1 A

Consumo≤ 10 W (without HDD and PoE off)

Temperatura de trabajo-10 °C to 55 °C (14 °F to 131 °F)

Condiciones de Humedad10% to 90%

Dimensión (W × D × H)265 × 225 × 48 mm (10.4" × 8.9" × 1.9")

≤ 1 kg (without HDD, 2.2 lb.)

Certificación

CEEN50130-4, EN 61000-3-2,EN 61000-3-3
