Procesador Intel Core i5-12400-2.5GHz (up to 4.4GHz) 6 nucleos Graficos UHD 730

Essentials

Product Collection 12th Generation Intel® Core™ i5 Processors

Code Name Products formerly Alder Lake

Vertical Segment Desktop

Processor Number i5-12400

Lithography Intel 7

Use Conditions PC/Client/Tablet

CPU Specifications

Total Cores 6

# of Performance-cores 6

# of Efficient-cores 0

Total Threads 12

Max Turbo Frequency 4.40 GHz

Performance-core Max Turbo Frequency 4.40 GHz

Performance-core Base Frequency 2.50 GHz

Cache 18 MB Intel® Smart Cache

Total L2 Cache 7.5 MB

Processor Base Power 65 W

Maximum Turbo Power 117 W

Supplemental Information

Embedded Options Available Yes

Memory Specifications

Max Memory Size (dependent on memory type) 128 GB

Memory Types Up to DDR5 4800 MT/s

Up to DDR4 3200 MT/s

Max # of Memory Channels 2

Max Memory Bandwidth 76.8 GB/s

Processor Graphics

Processor Graphics ‡ Intel® UHD Graphics 730

Graphics Base Frequency 300 MHz

Graphics Max Dynamic Frequency 1.45 GHz

Graphics Output eDP 1.4b, DP 1.4a, HDMI 2.1

Execution Units 24

Max Resolution (HDMI)‡ 4096 x 2160 @ 60Hz

Max Resolution (DP)‡ 7680 x 4320 @ 60Hz

Max Resolution (eDP - Integrated Flat Panel)‡ 5120 x 3200 @ 120Hz

DirectX* Support 12

OpenGL* Support 4.5

Multi-Format Codec Engines 1

Intel® Quick Sync Video Yes

Intel® Clear Video HD Technology Yes

# of Displays Supported ‡ 4

Device ID 0x4692 / 0x4682

OpenCL* Support 2.1

Expansion Options

Direct Media Interface (DMI) Revision 4.0

Max # of DMI Lanes 8

Scalability 1S Only

PCI Express Revision 5.0 and 4.0

PCI Express Configurations ‡ Up to 1x16+4, 2x8+4

Max # of PCI Express Lanes 20

Package Specifications

Sockets Supported FCLGA1700

Max CPU Configuration 1

Thermal Solution Specification PCG 2020C

TJUNCTION 100°C

Package Size 45.0 mm x 37.5 mm

Advanced Technologies

Intel® Gaussian & Neural Accelerator 3.0

Intel® Thread Director No

Intel® Deep Learning Boost (Intel® DL Boost) Yes

Intel® Optane™ Memory Supported ‡ Yes

Intel® Speed Shift Technology Yes

Intel® Turbo Boost Max Technology 3.0 ‡ No

Intel® Turbo Boost Technology ‡ 2.0

Intel® Hyper-Threading Technology ‡ Yes

Intel® Virtualization Technology (VT-x) ‡ Yes

Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes

Intel® VT-x with Extended Page Tables (EPT) ‡ Yes

Intel® 64 ‡ Yes

Instruction Set 64-bit

Instruction Set Extensions Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2

Idle States Yes

Enhanced Intel SpeedStep® Technology Yes

Thermal Monitoring Technologies Yes

Intel® Volume Management Device (VMD) Yes

Security & Reliability

Intel® Threat Detection Technology (TDT) Yes

Intel® Standard Manageability (ISM) ‡ Yes

Intel® AES New Instructions Yes

Secure Key Yes

Intel® OS Guard Yes

Execute Disable Bit ‡ Yes

Intel® Boot Guard Yes

Mode-based Execute Control (MBEC) Yes

Intel® Control-Flow Enforcement Technology Yes

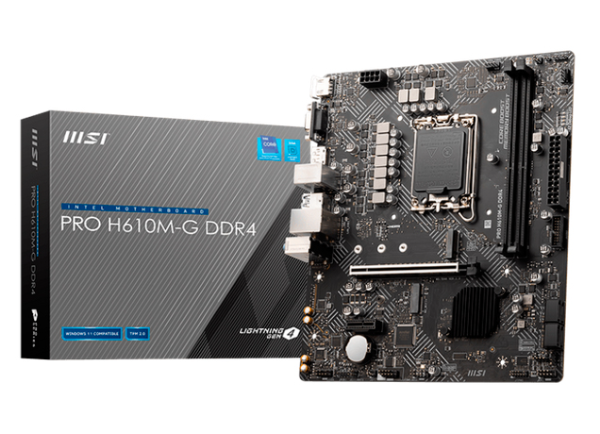

Processor

Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors1

Processor socket LGA1700

Please go to www.msi.com to get the newest support status as new processors are released.

Chipset

Intel® H610 Chipset

Memory

2x DDR4 memory slots, support up to 64GB1

Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Expansion Slot

1x PCIe x16 slot (From CPU)

Supports up to PCIe 4.0 x16

1x PCIe x1 slot

Supports PCIe 3.0 x1

1x M.2 slot with E-key for PCIe WiFi module only (M2_ WIFI1)

Onboard Graphics

1x HDMI™ 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1 2

1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz1

x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz1 2

Available only on processors featuring integrated graphics.

Graphics specifications may vary depending on the CPU installed.

SATA Ports

4x SATA 6Gb/s ports1

* SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.

M.2 SSD Slot

1x M.2 slot (Key M, from chipset)1

Supports up to PCIe 3.0 x4

Supports up to SATA 6Gb/s

Supports 2242/ 2260/ 2280 storage devices

Supports Intel® Smart Response Technology for Intel Core™ processors

SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot

USB

Intel® H610 Chipset

4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)

6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)

Audio

Realtek® ALC892/ ALC897 Codec

7.1-Channel High Definition Audio

LAN

1x Intel® I219V 1Gbps LAN controller

Power Connectors

1x 24-pin ATX main power connector

1x 8-pin ATX 12V power connector

Fan Connectors

1x 4-pin CPU fan connector

1x 4-pin system fan connector

System Connectors

1x Front panel audio connector

2x System panel connectors

1x Chassis Intrusion connector

1x TPM module connector

Jumpers

1x Clear CMOS jumper

LED Features

1x 4-pin RGB LED connector

2x 3-pin RAINBOW LED connectors

4x EZ Debug LED

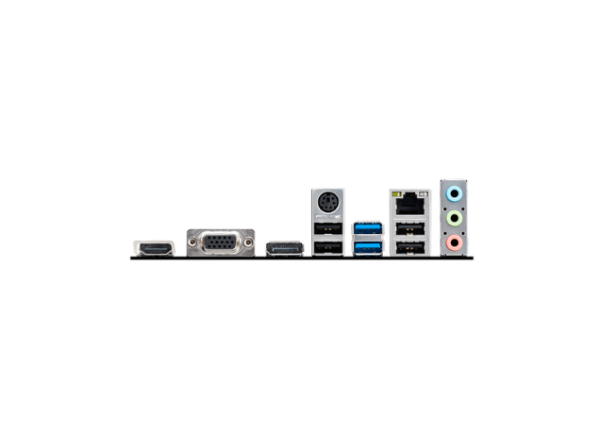

Back panel ports

HDMI™

VGA

DisplayPort

Keyboard/Mouse

USB 3.2 Gen 1 5Gbps Type-A

LAN port

Audio connector

USB 2.0

Dimensions

mATX Form Factor

9.29 x 7.95 in. (23.6 cm x 20.2 cm)

Operating System

Support for Windows® 11 64-bit

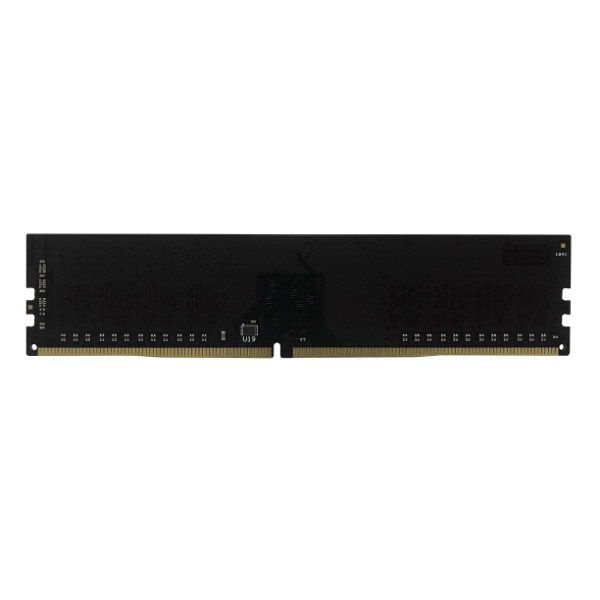

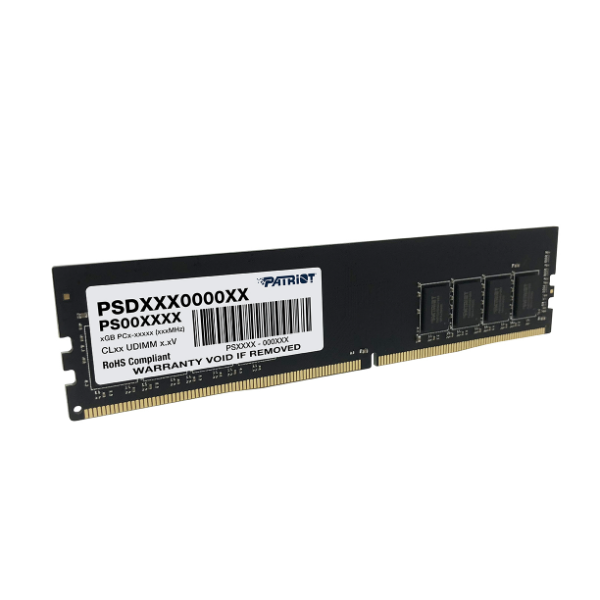

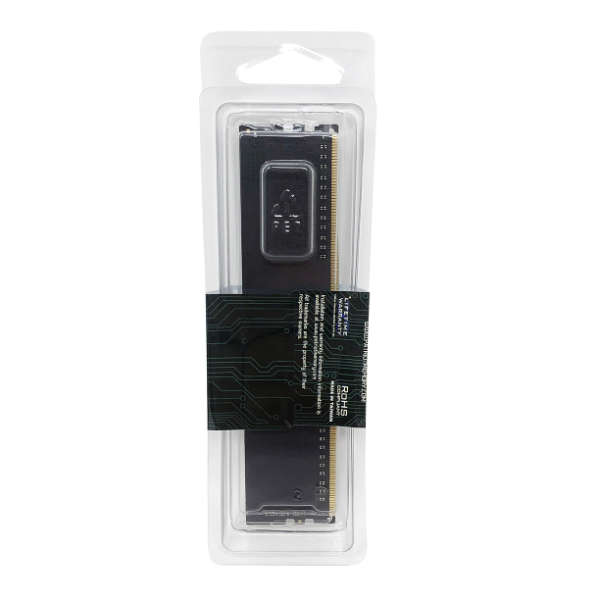

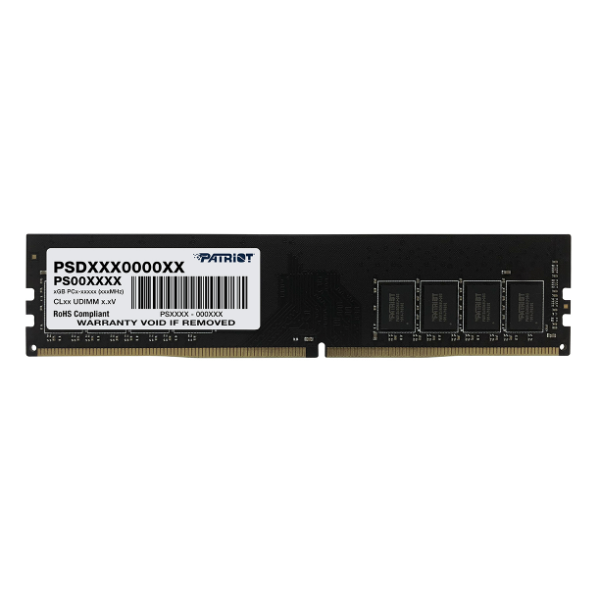

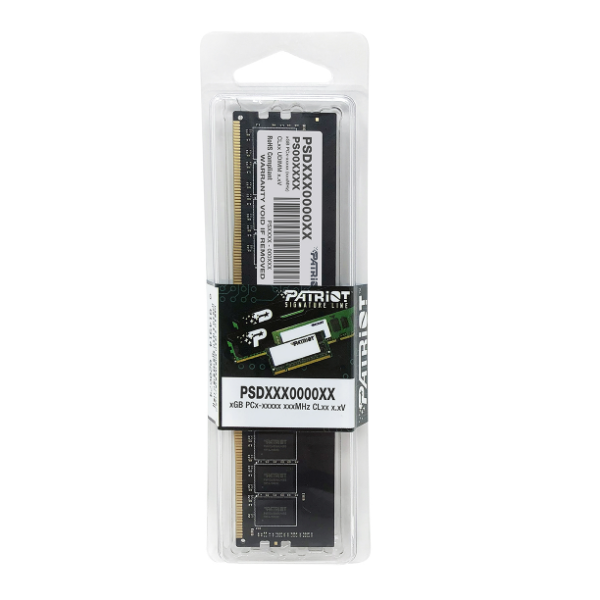

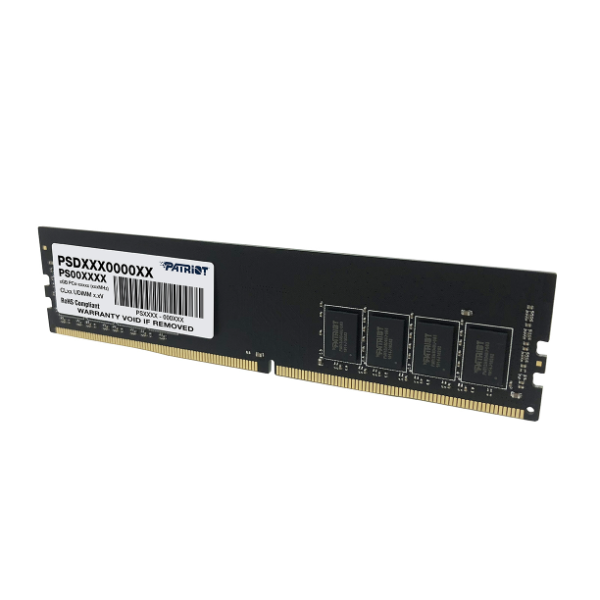

FEATURES:

• Series: Signature Line

• Form Factor: 288-Pin Unbuffered Dual In-Line Memory

Module (UDIMM)

• Technology: DDR4 Non-ECC Unbuffered

• Capacity: 8GB (1x8GB)

• Frequency: 3200MT/s (PC4-25600)

• Timings: 22-22-22-52

• VDD Voltage: 1.2v

• Double-sided Module

• RoHS Compliant

• Operating Temperature: 0°C - 85°C

• 100% Tested

• Limited Lifetime Warranty
